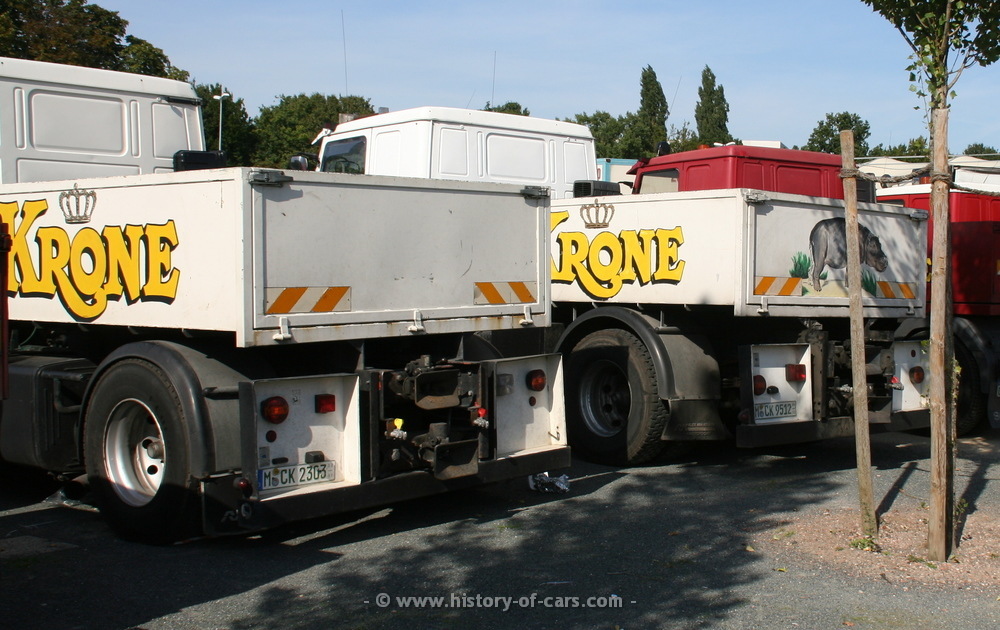

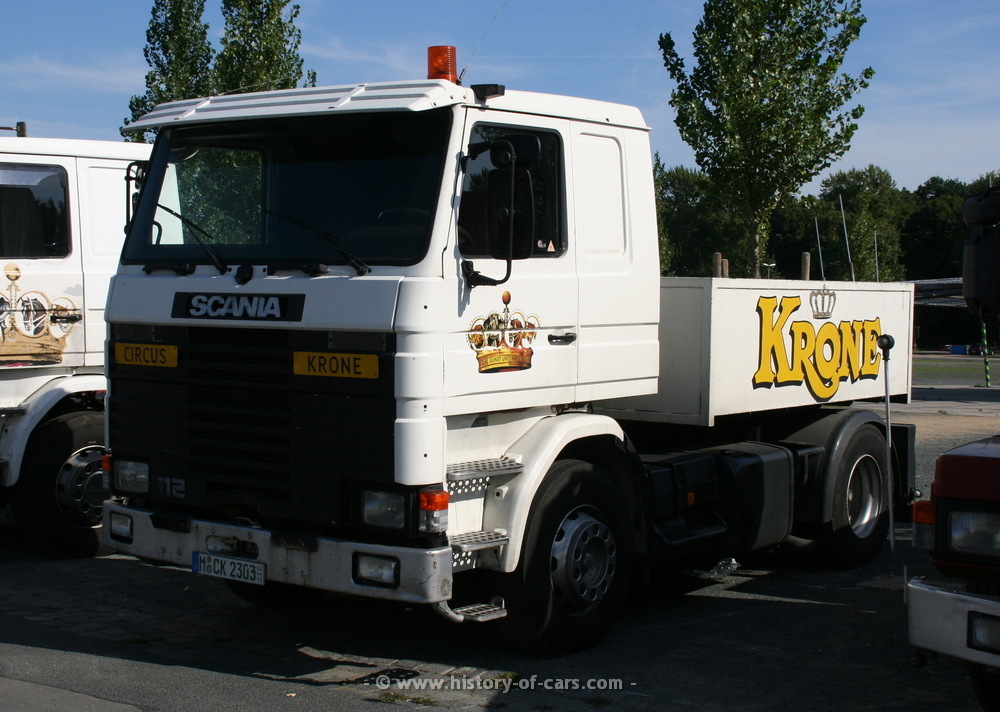

Scania 112 4x2 ex-Sattelzugmaschine Schausteller "Circus Krone"
Fahrzeugtyp:
schwerer Lastwagen
Baujahr Fahrzeug:
1980-1988
Baujahr Modellreihe:
1980-1988
Herkunftsland:
Schweden
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Scania D11
80-82:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
202PS
@?/min
18.3 PS/l
DI
? Nm
@?/min
Scania DN11 01
82-88:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
203PS
@2200/min
18.4 PS/l
DI
760 Nm
@1200/min
Scania DS11
80-82:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
280PS
@2200/min
25.4 PS/l
TDDI
1105 Nm
@1200/min
Scania DS11 14
82-88:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
280PS
@2000/min
25.4 PS/l
TDDI
1165 Nm
@1300/min
Scania DS11
80-82:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
305PS
@2200/min
27.7 PS/l
TDDI
1108 Nm
@1400/min
Scania DS11 15
82-88:
R6/12V
?:1
127.0 x 145.0 mm
11021 cm³
305PS
@2000/min
27.7 PS/l
TDDI
1235 Nm
@1300/min
Scania DSC11 01
82-88:
R6/12V
15.0:1
127.0 x 145.0 mm
11021 cm³
333PS
@2000/min
30.2 PS/l
TDDI
1395 Nm
@1250/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
11.0l | 202PS:
? kmh
? l/100km
? m/s
? bar
engine option #2
11.0l | 203PS:
? kmh
? l/100km
10.6 m/s
7.4 bar
engine option #3
11.0l | 280PS:
? kmh
? l/100km
10.6 m/s
10.2 bar
engine option #4
11.0l | 280PS:
? kmh
? l/100km
9.7 m/s
11.2 bar
engine option #5
11.0l | 305PS:
? kmh
? l/100km
10.6 m/s
11.1 bar
engine option #6
11.0l | 305PS:
? kmh
? l/100km
9.7 m/s
12.2 bar
engine option #7
11.0l | 333PS:
? kmh
? l/100km
9.7 m/s
13.3 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
12 R22.5
Getriebe/Antrieb:
10 Vorwärts, ? Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
? mm x ? mm x ? mm // ?/? mm
Radstände - Spur v/m/h:
? mm - ?/? mm
Gewichte leer/zGG/zZGG:
ca. 6600 kg - ca. 6900 kg / 16000 kg / 38000 kg
Nutzlast/-verhältnis:
ca. 9400 kg / ca. 1.42
Leistungsgew. leer/zGG/zZGG:
20.7 - 32.7 / 48 - 79.2 / 114.1 - 188.1 kg/PS // 30.6 - 48.3 / 12.6 - 20.8 / 5.3 - 8.8 PS/Tonne
