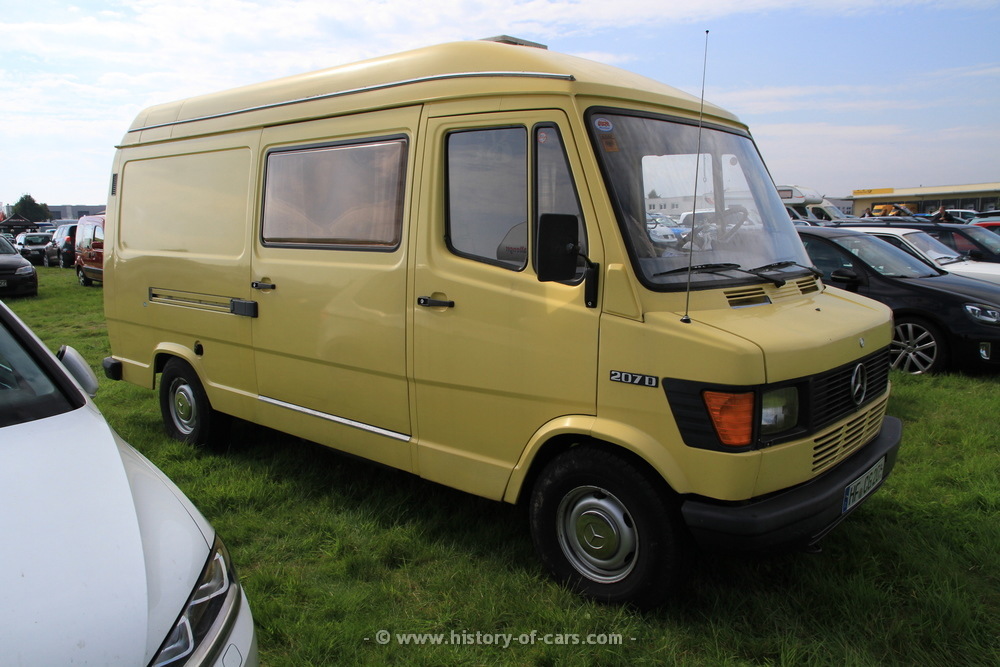

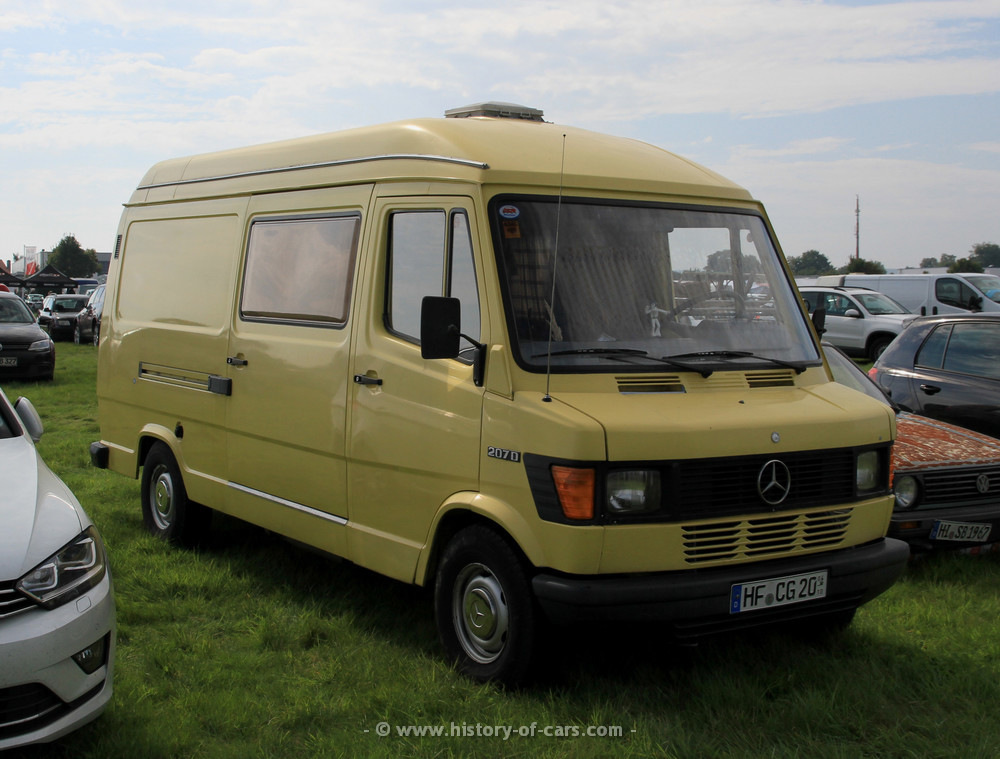

Mercedes-Benz T1 207D Kastenwagen lang/Hochdach
Fahrzeugtyp:
leichtes Nutzfahrzeug
Baujahr Fahrzeug:
1977-1988
Baujahr Modellreihe:
1977-1995
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
OM616
77-82:
i4/8V
21.0:1
91.0 x 92.4 mm
2404 cm³
65PS
@4200/min
27.0 PS/l
Diesel
134 Nm
@2400/min
OM616
82-88:
i4/8V
?:1
90.9 x 92.4 mm
2399 cm³
72PS
@4400/min
30.0 PS/l
Diesel
134 Nm
@2400/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
2.4l | 65PS:
110 kmh
11.0-12.0 l/100km
12.9 m/s
5.7 bar
engine option #2
2.4l | 72PS:
115 kmh
11.0-12.0 l/100km
13.6 m/s
6.0 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
185 R14
Getriebe/Antrieb:
4 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
5235 mm x 1975 mm x 2525 mm // ?/? mm
Radstände - Spur v/m/h:
3350 mm - 1600/1610 mm
Einige Berechnungen:
Grundfläche: ca. 10.34 m² - Stirnfläche: ca. 4.11 m² - LxBxH: ca. 26.11 m³
Gewichte leer/zGG/zZGG:
1630 kg / 2800 kg / ? kg
Nutzlast/-verhältnis:
1170 kg / 0.72
Leistungsgew. leer/zGG/zZGG:
22.6 - 25.1 / 38.9 - 43.1 / ? kg/PS // 39.9 - 44.2 / 23.2 - 25.7 / ? PS/Tonne
Wendekreis:
11.8 m
