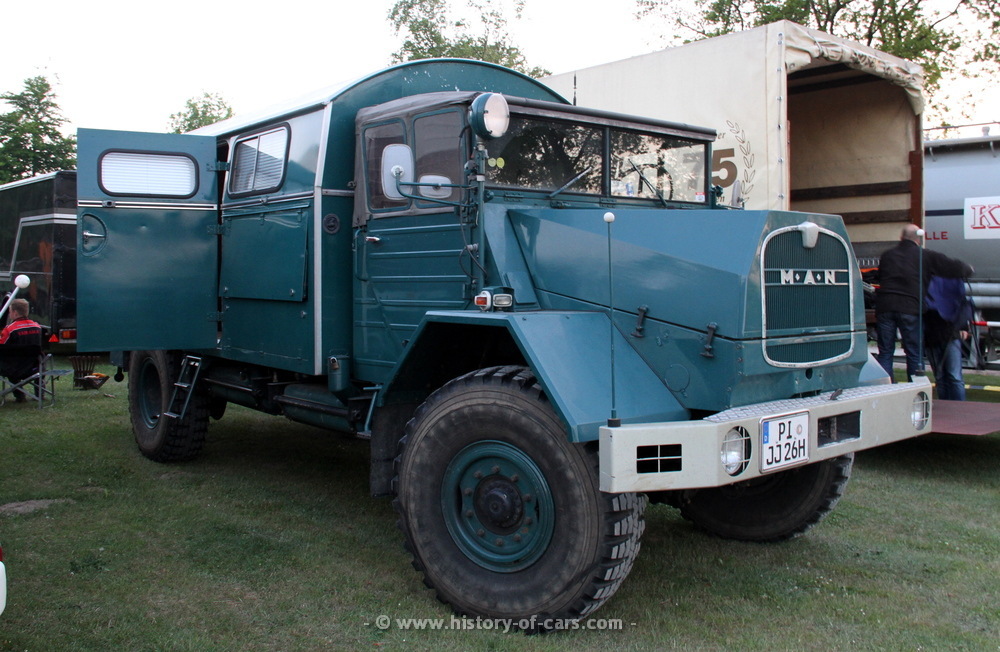

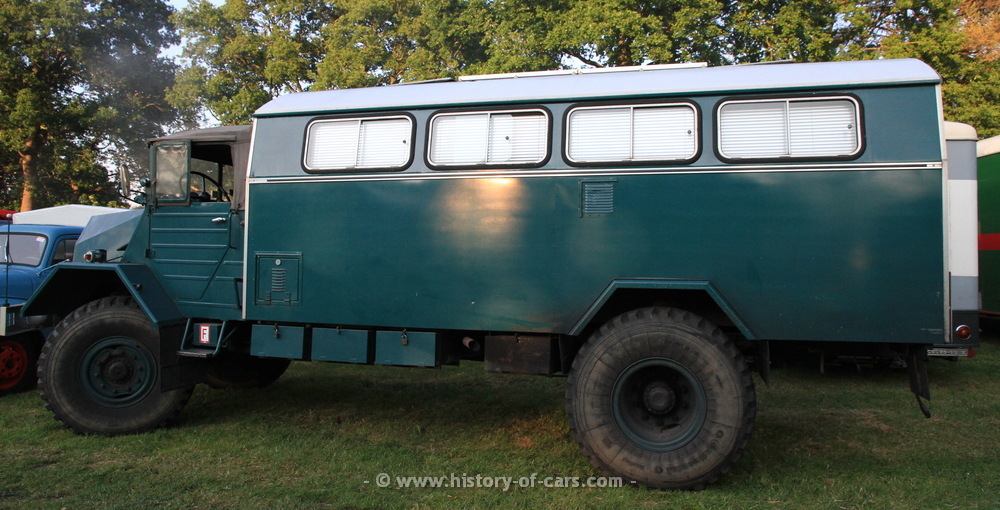

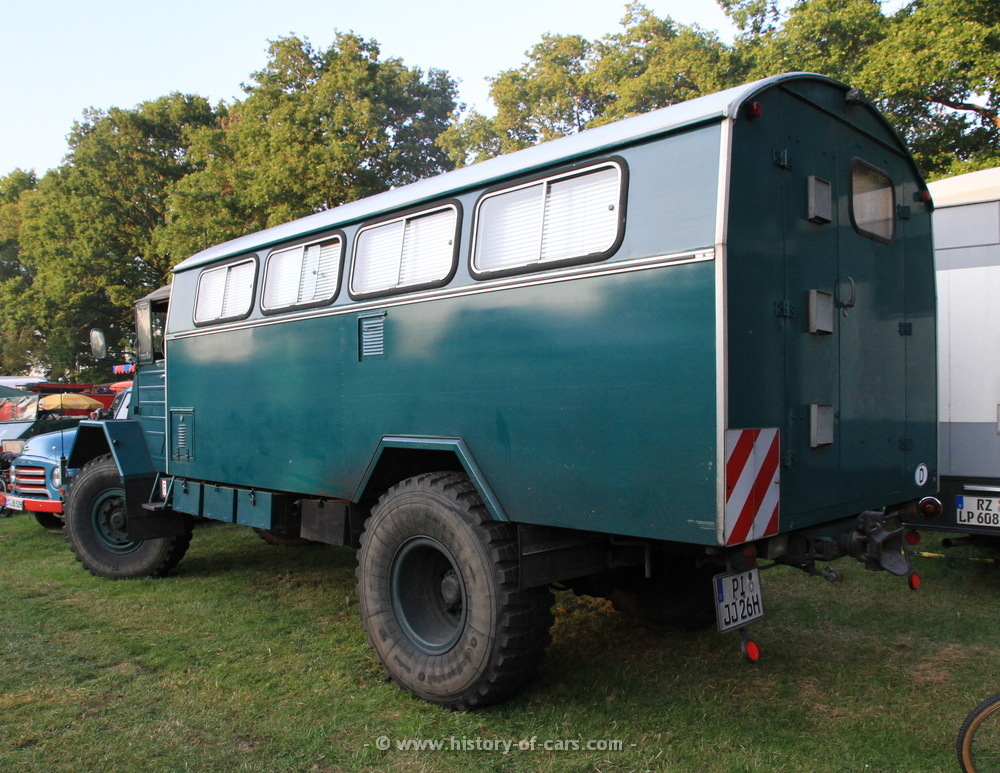

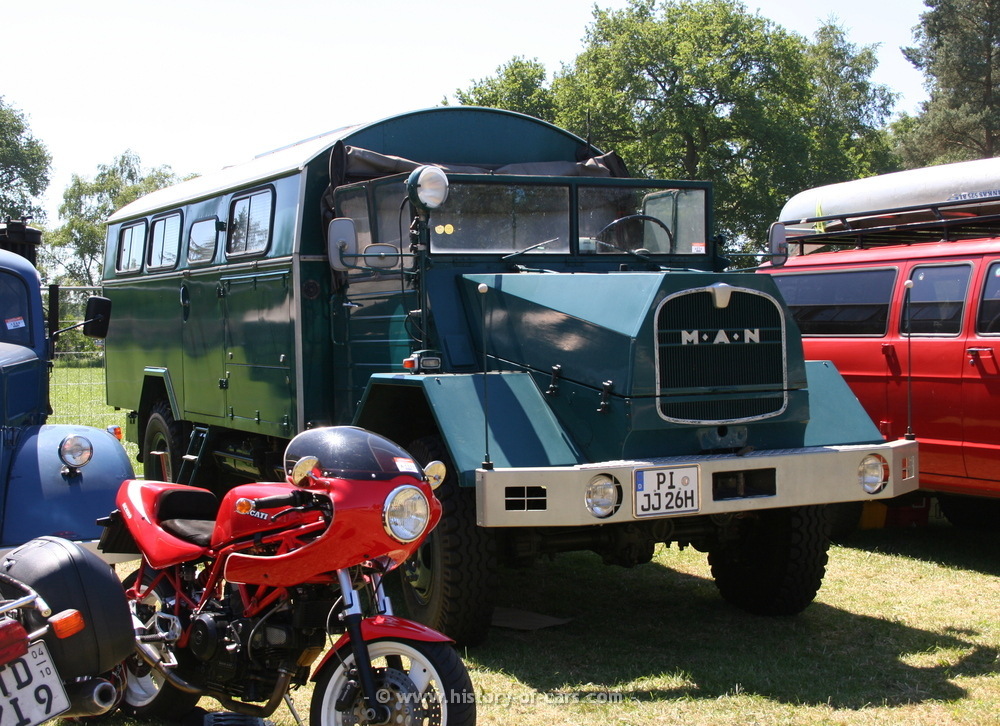

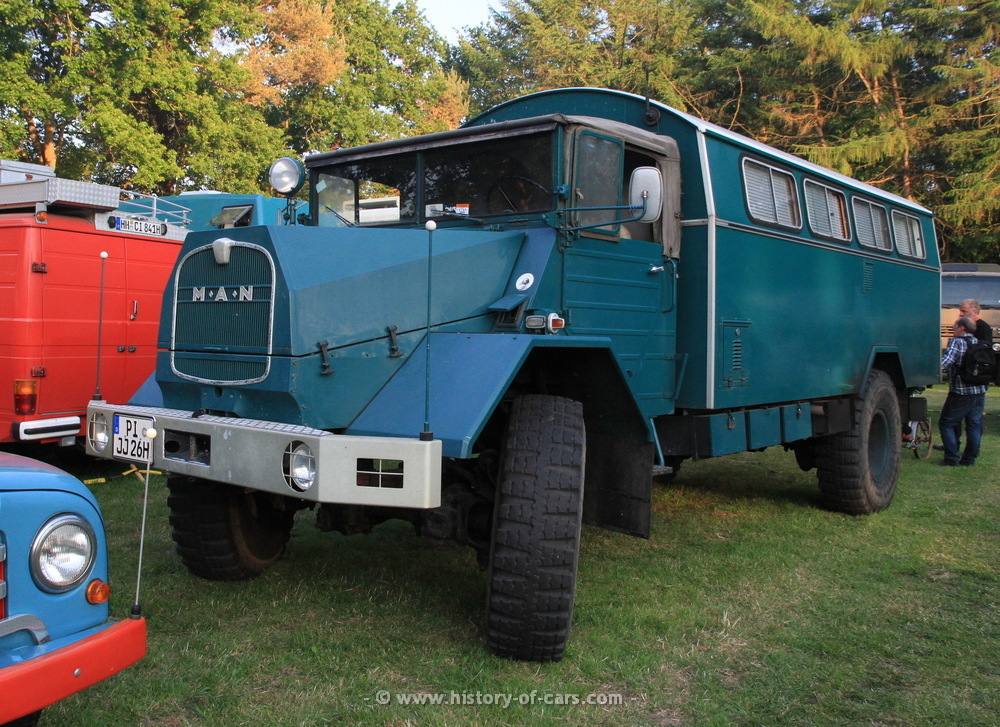

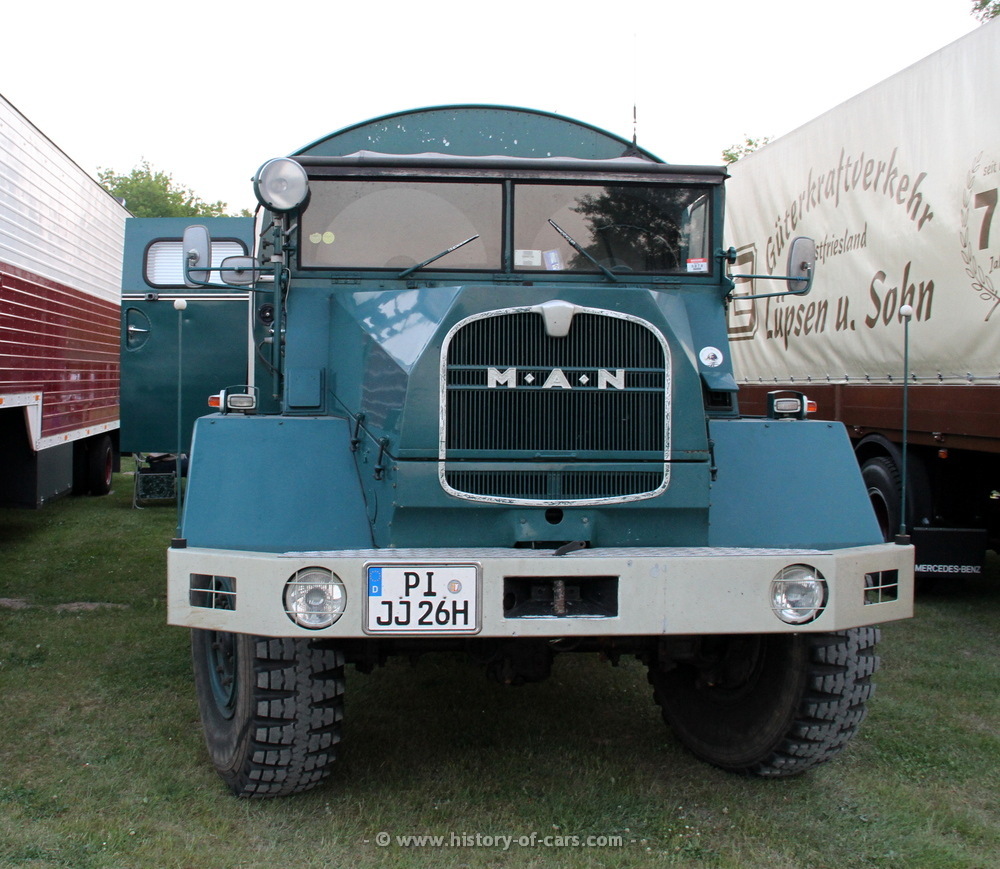

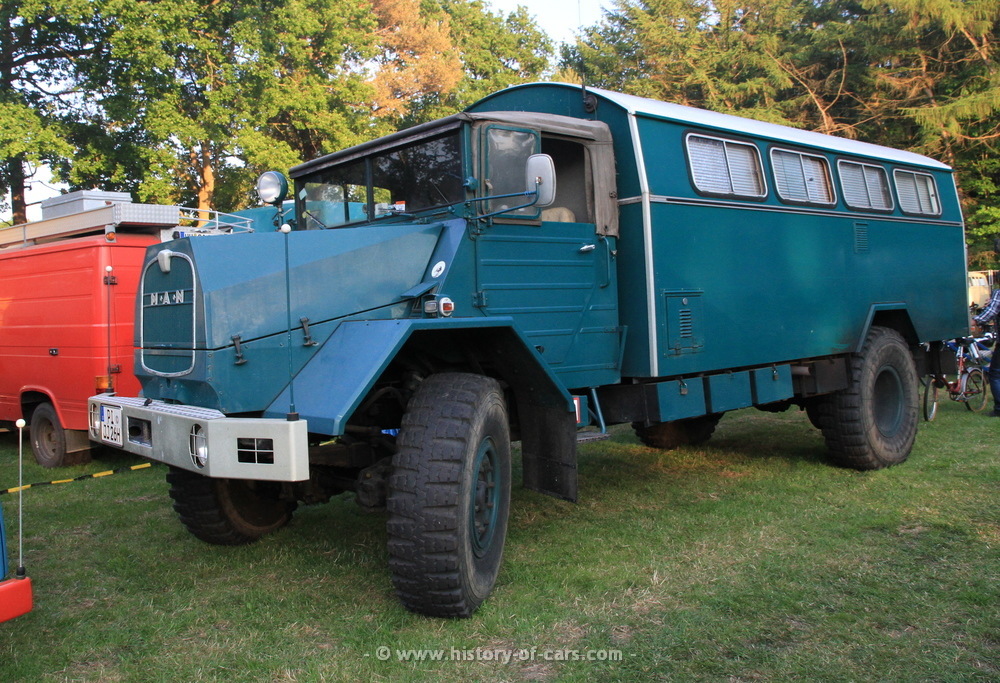

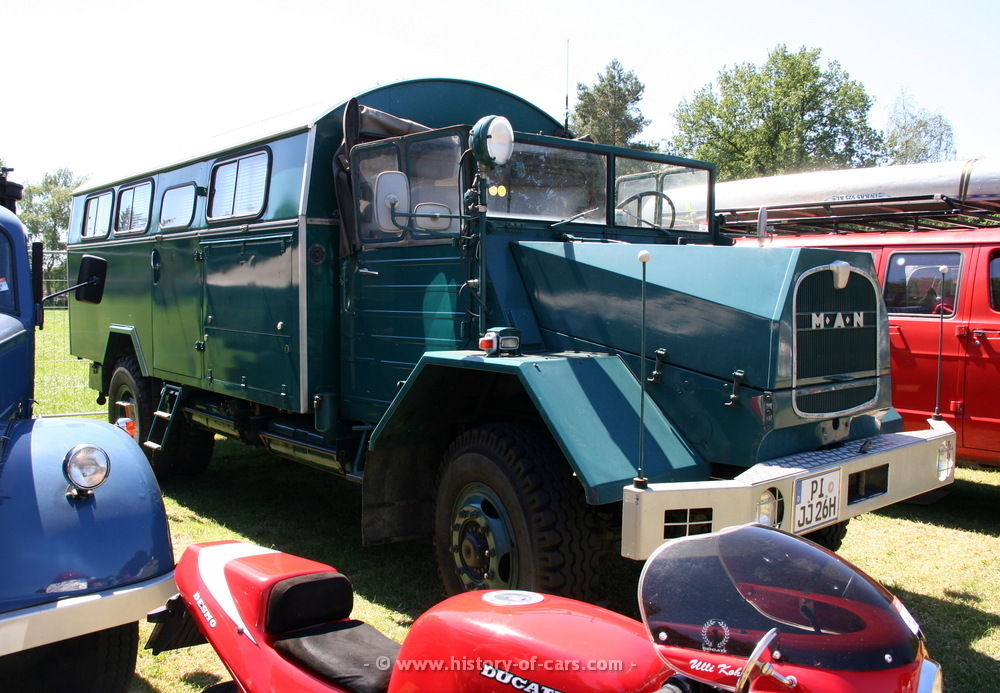

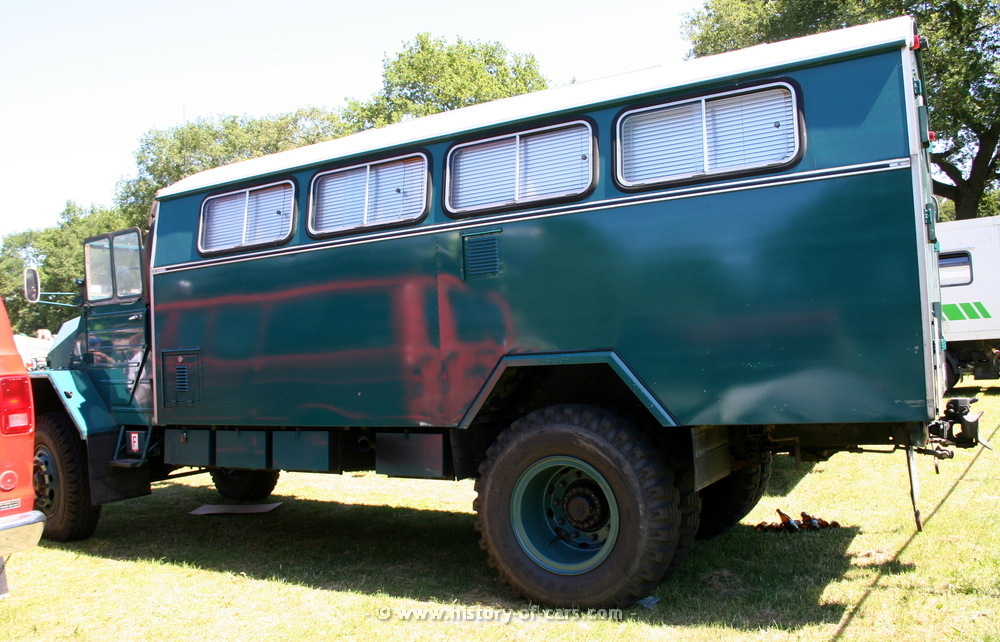

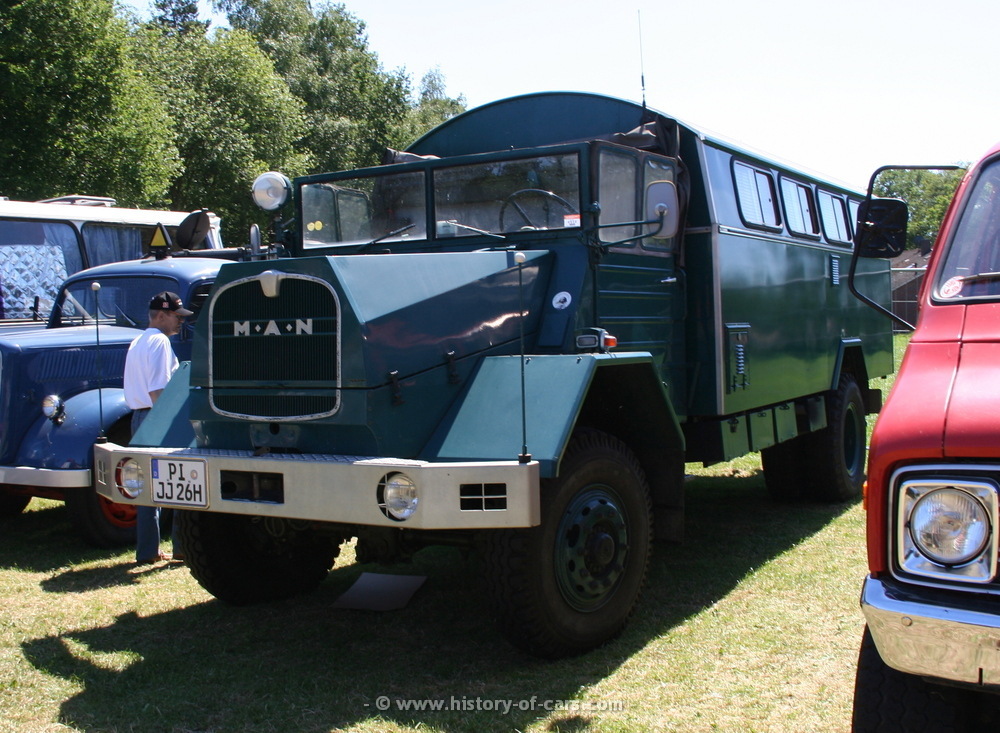

MAN 630 L2AE Kommandowagen-Koffer
Fahrzeugtyp:
Militärfahrzeug
Baujahr Fahrzeug:
1958-1971
Baujahr Modellreihe:
1958-1971
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
MAN/D 1246 MVA
58-71:
R6/12V
19.0:1
112.0 x 140.0 mm
8276 cm³
130PS
@2000/min
15.7 PS/l
Vielstoff
510 Nm
@1200/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
8.3l | 130PS:
67 kmh
30.0 l/100km
9.3 m/s
6.9 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
14.00-20
Getriebe/Antrieb:
ZF AK6-55: 6 Vorwärts, 1 Rückwärts / 4x4
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
7750 mm x 2500 mm x 2980 mm // 1130/2000 mm
Radstände - Spur v/m/h:
4600 mm - 1922/1763 mm
Einige Berechnungen:
Grundfläche: ca. 19.38 m² - Stirnfläche: ca. 6.15 m² - LxBxH: ca. 57.74 m³
Gewichte leer/zGG/zZGG:
ca. 7925 kg / 13000 kg / ? kg
Nutzlast/-verhältnis:
ca. 5075 kg / ca. 0.64
Leistungsgew. leer/zGG/zZGG:
61 / 100 / ? kg/PS // 16.4 / 10 / ? PS/Tonne
