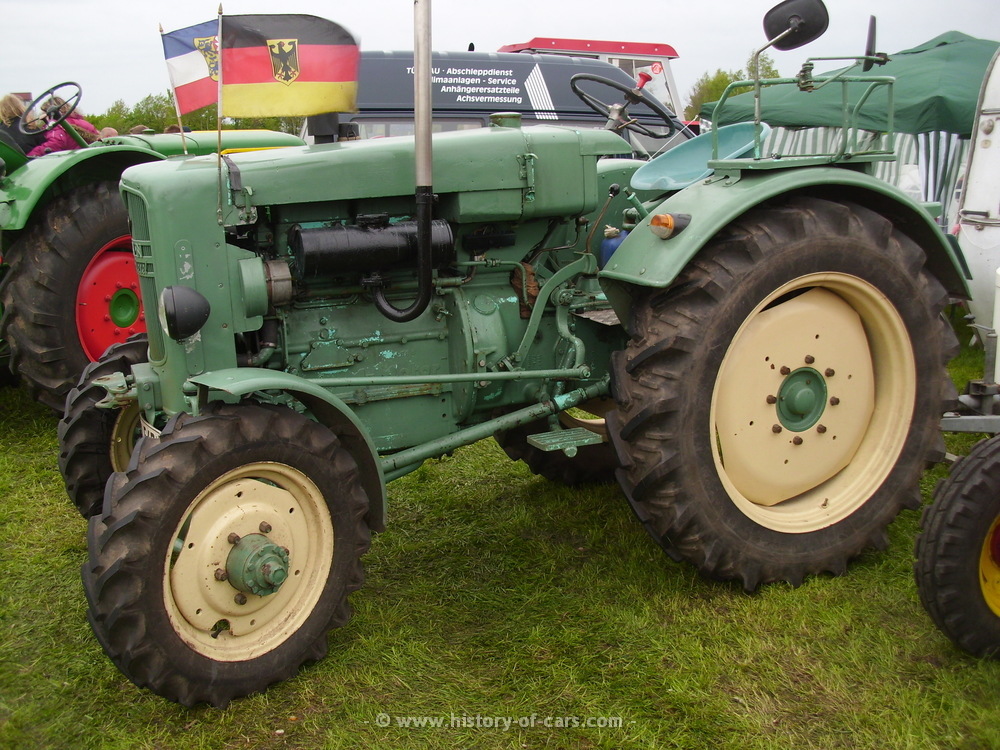

MAN C40A / C40A/0

Fahrzeugtyp:
Ackerschlepper
Baujahr Fahrzeug:
1955-1956 / 1956-1957
Baujahr Modellreihe:
1955-1957
Herkunftsland:
Motoren/Fahrleistungen
Reifen/Räder/Getriebe
6.50-20 // 10-28
optionale Räder vorn/hinten:
? // 11-28, 11.25-24
Getriebe/Antrieb:
ZF A15V: 6 Vorwärts, 1 Rückwärts / 4x4
Abmessungen/Gewichte
Länge x Breite x Höhe
3135 mm x 1680 mm x 1700 mm
Radstand - Spur v/h:
1825 mm - 1290 bis 1490 / 1250 bis 1500 mm
Bodenfreiheit:
400 mm
Einige Berechnungen:
Grundfläche: ca. 5.27 m² - Stirnfläche: ca. 2.36 m² - LxBxH: ca. 8.95 m³
Gewichte leer/zGG:
2260 kg / 3000 kg
max. Achslasten:
1.: 1400 kg  2.: 1850 kg
Leistungsgewicht leer/zGG:
56.5 / 75 - 75 kg/PS // 17.7 / 13.3 - 13.3 PS/Tonne
Wendekreis mit Lenkbremse:
6 m
Produktionszahlen
C40A: 1.010
C40A/0: 340
