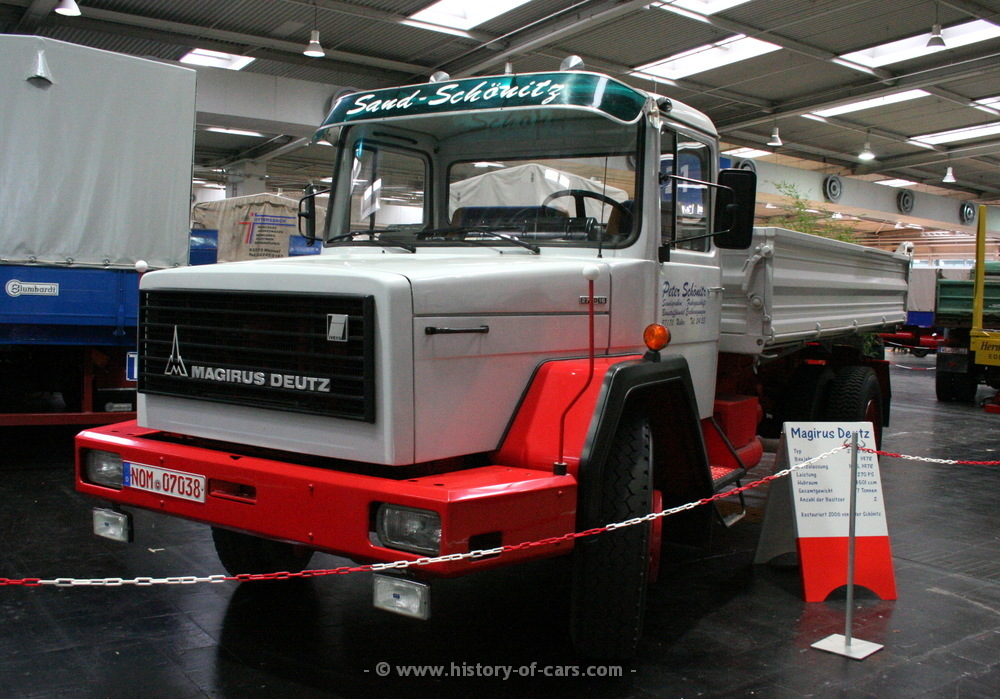

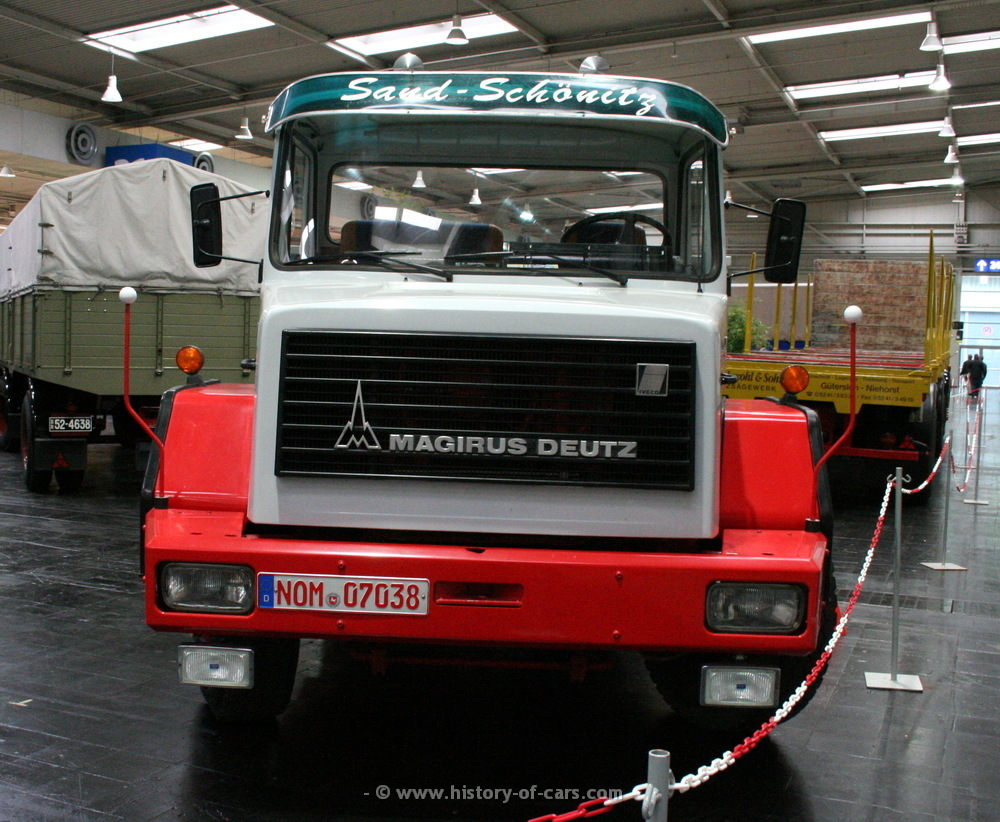

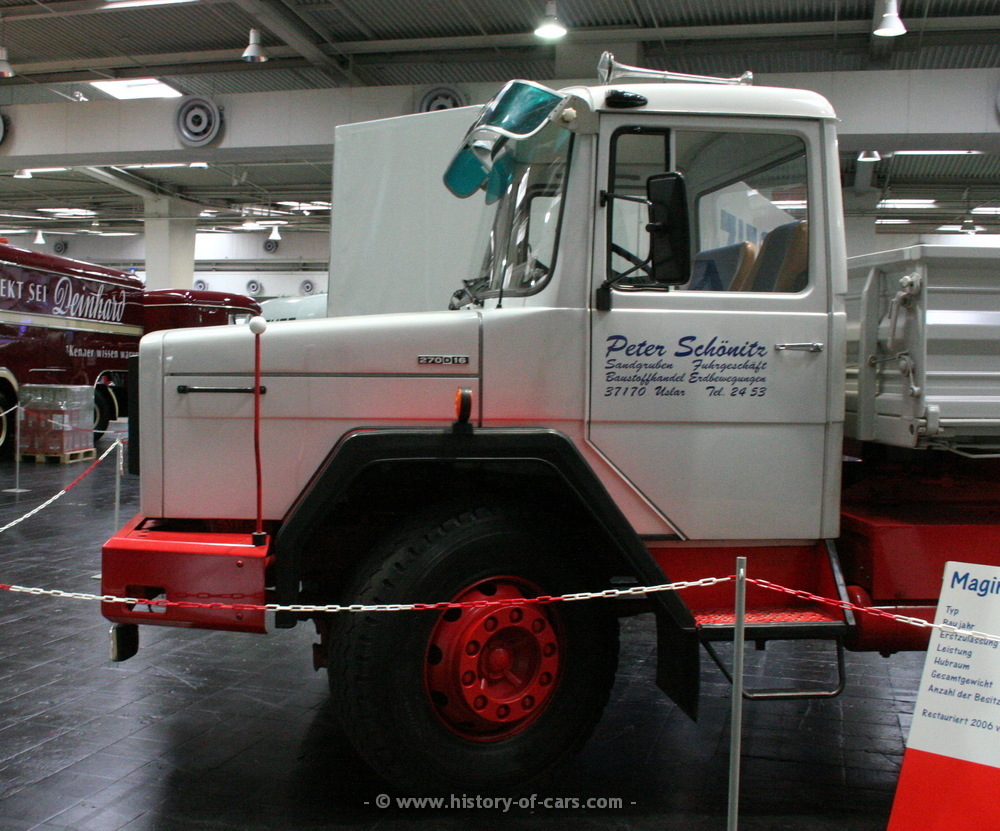

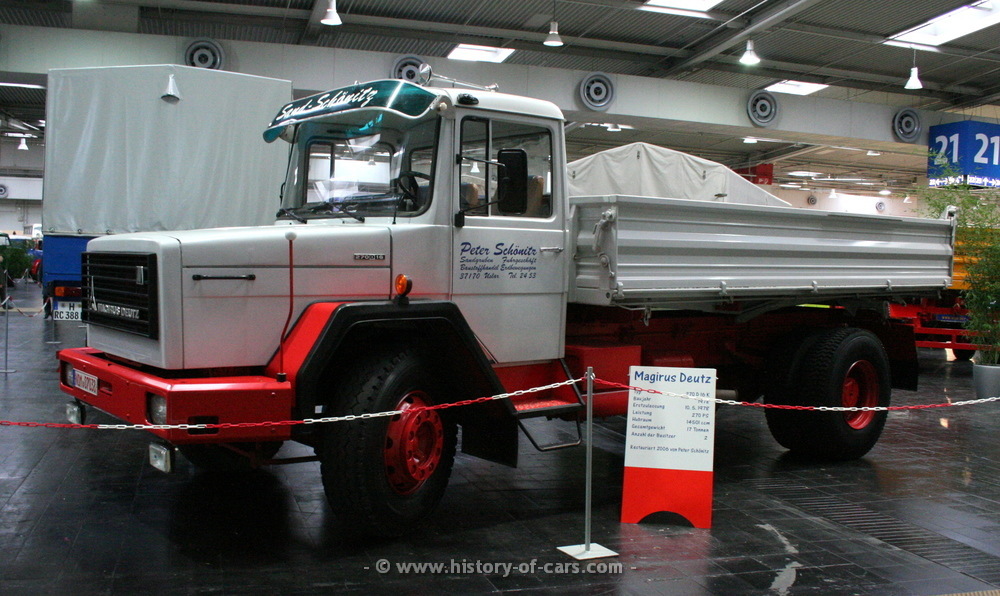

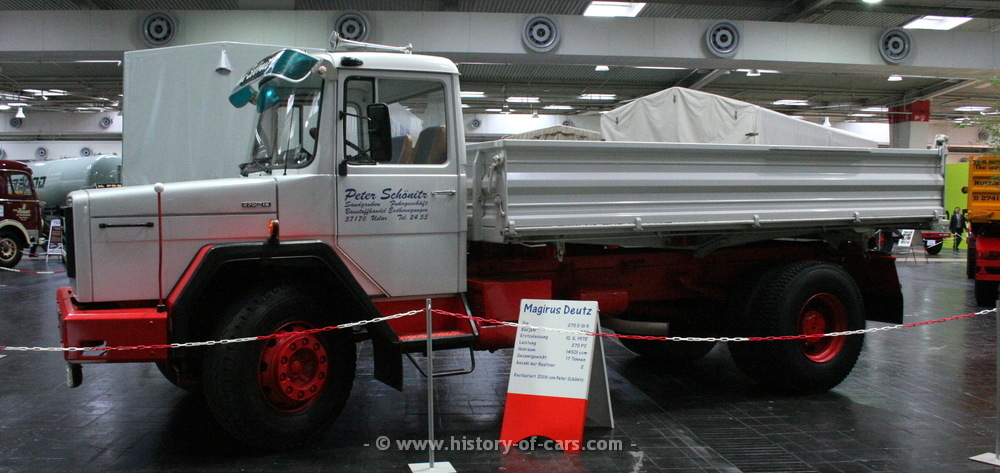

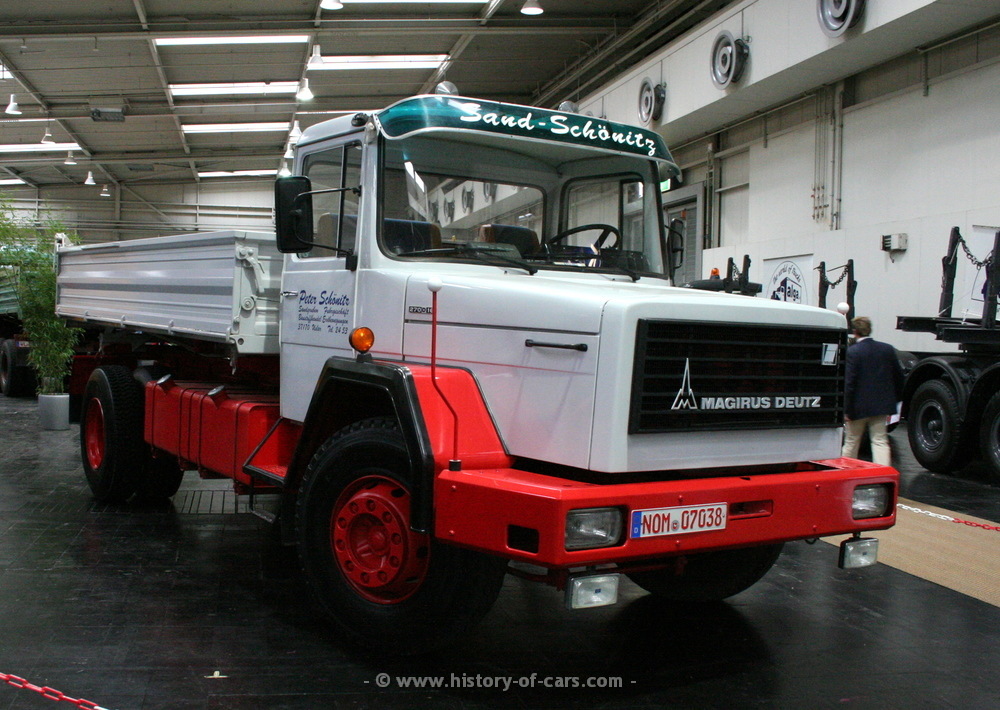

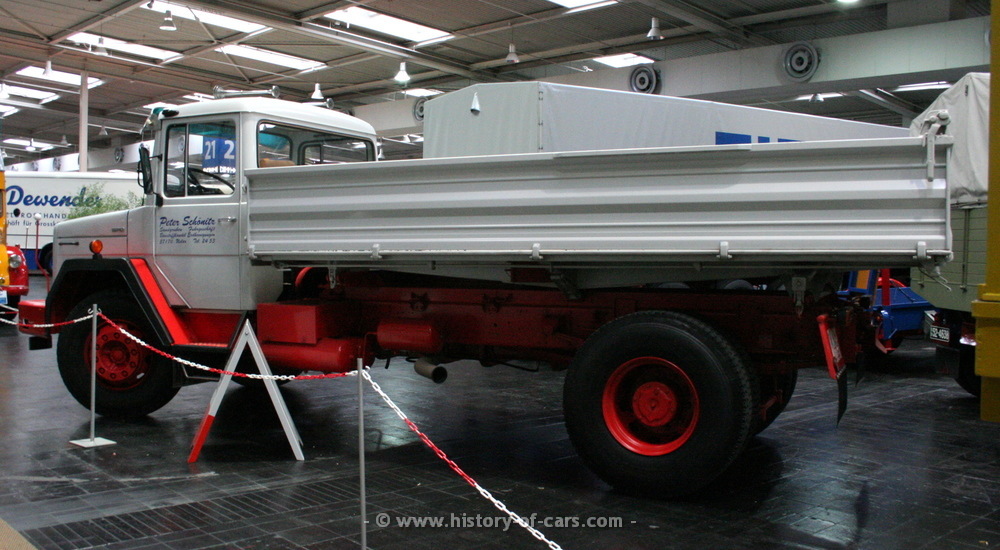

Magirus-Deutz M270D16 K Kipper
Fahrzeugtyp:
schwerer Lastwagen
Baujahr Fahrzeug:
1978
Baujahr Modellreihe:
1973-1984
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
option #1
78:
V10/20V
?:1
120.0 x 130.0 mm
14702 cm³
270PS
@2650/min
18.4 PS/l
DDI
865 Nm
@1400/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
14.7l | 270PS:
81 kmh
30.0 l/100km
11.5 m/s
6.1 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
12.00 R20
Getriebe/Antrieb:
6 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
? mm x ? mm x ? mm // ?/? mm
Radstände - Spur v/m/h:
? mm - ?/? mm
Gewichte leer/zGG/zZGG:
7690 kg / 16000 kg / 38000 kg
Nutzlast/-verhältnis:
8310 kg / 1.08
Leistungsgew. leer/zGG/zZGG:
28.5 / 59.3 / 140.7 kg/PS // 35.1 / 16.9 / 7.1 PS/Tonne
