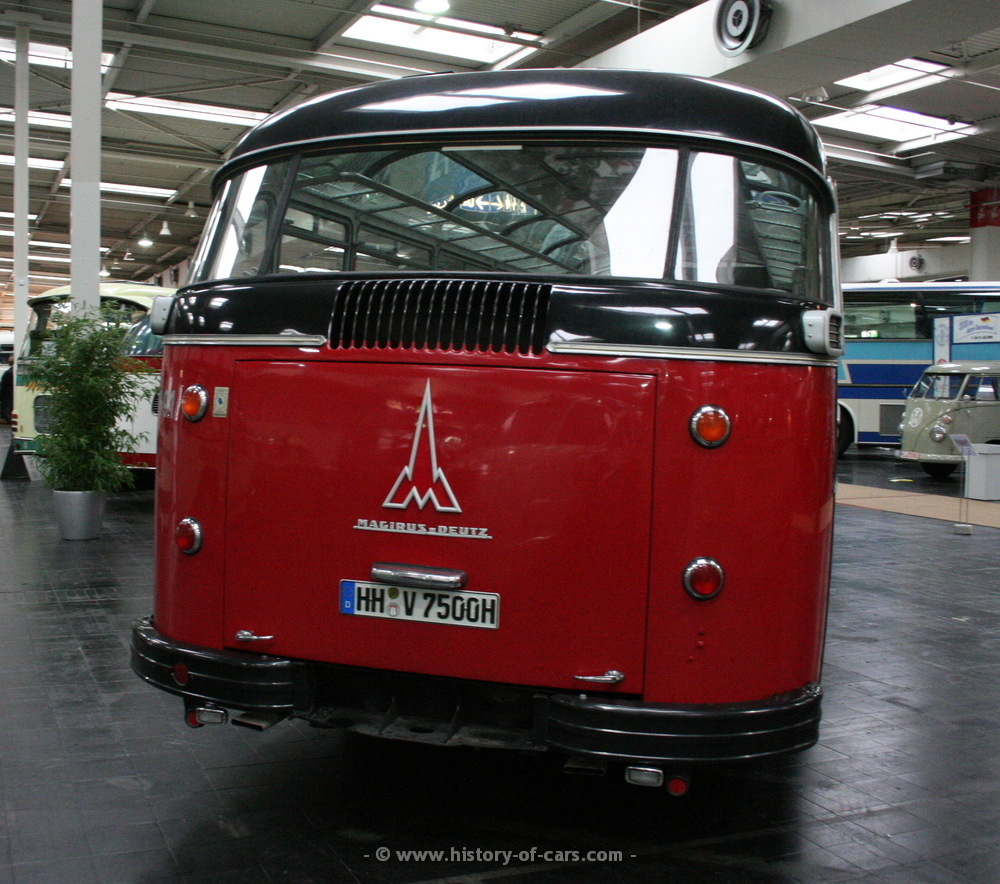

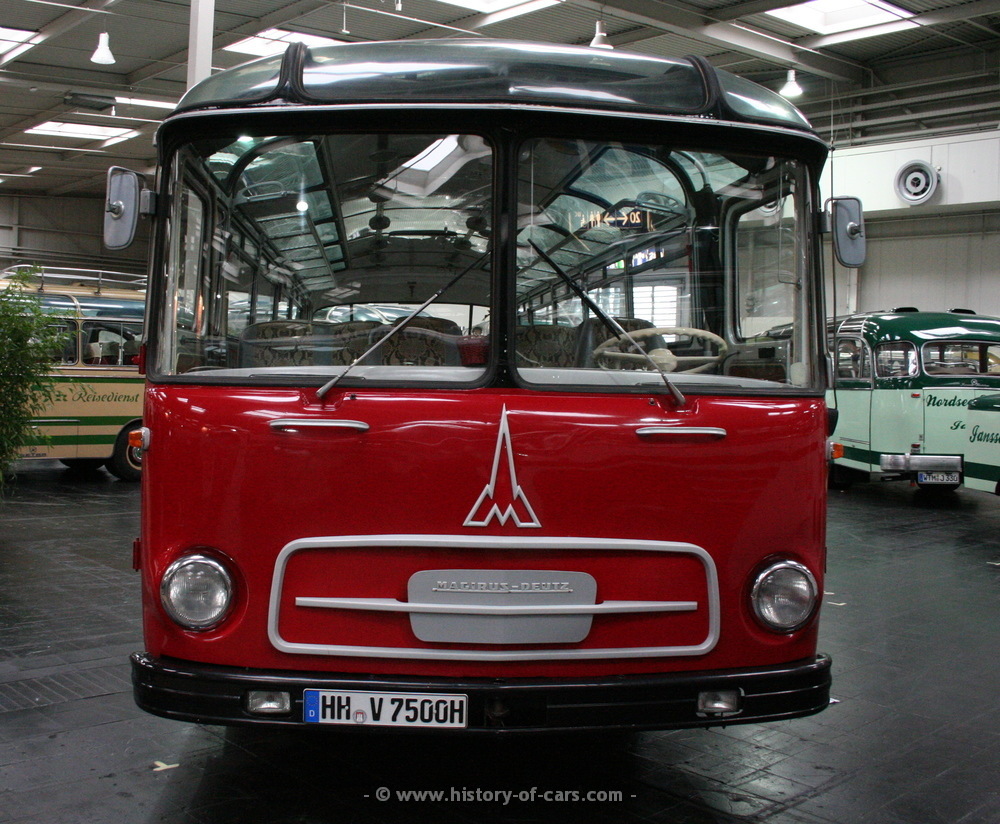

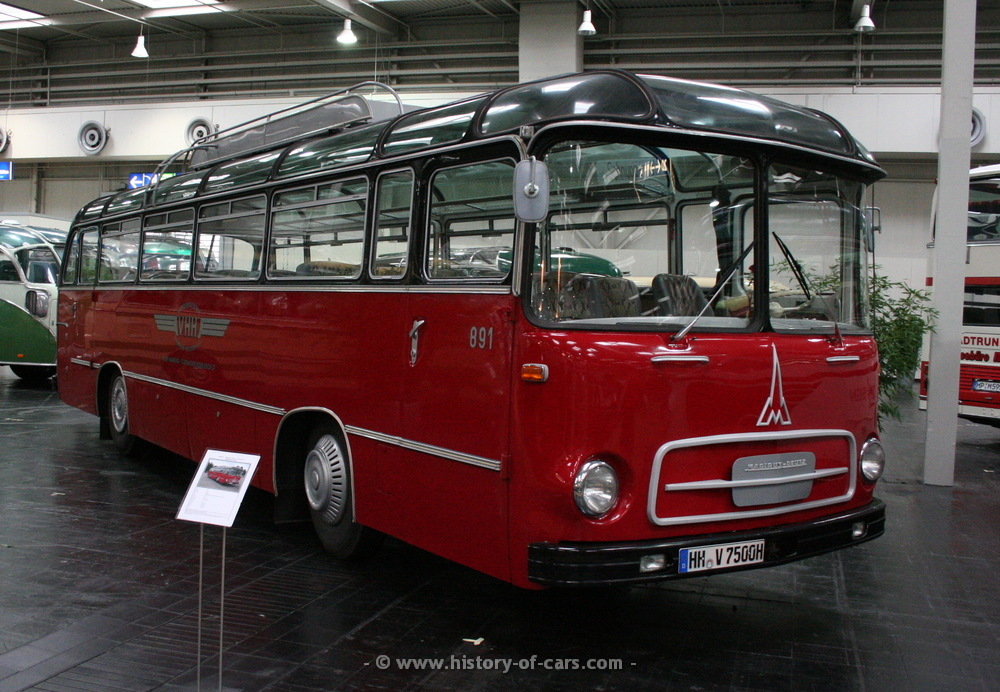

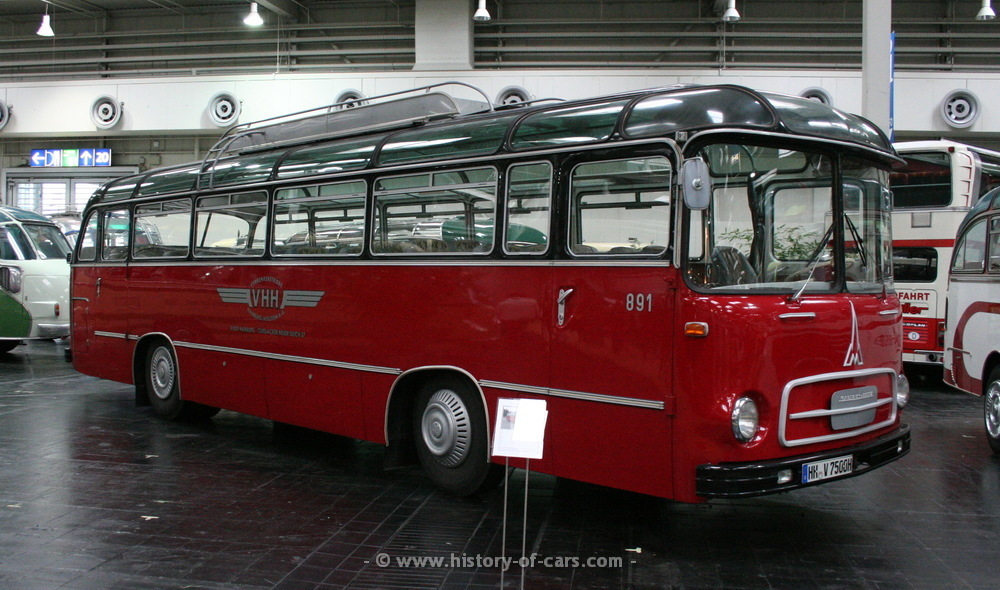

Magirus-Deutz Saturn II
Fahrzeugtyp:
Reisebus
Baujahr Fahrzeug:
1962
Baujahr Modellreihe:
?
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Deutz F6L 714
62:
V6/12V
19.0:1
120.0 x 140.0 mm
9500 cm³
150PS
@2300/min
15.8 PS/l
Diesel
510 Nm
@1300/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
9.5l | 150PS:
97 kmh
19.7 l/100km
10.7 m/s
6.1 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
9.00-20
Getriebe/Antrieb:
ZF S 5-35: 5 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
10000 mm x 2500 mm x 2850 mm // 2545/2945 mm
Radstände - Spur v/m/h:
4500 mm - 1870/1690 mm
Einige Berechnungen:
Grundfläche: ca. 25.00 m² - Stirnfläche: ca. 5.88 m² - LxBxH: ca. 71.25 m³
Gewichte leer/zGG/zZGG:
7300 kg / 10800 kg / 12000 kg
max. Achslasten tech./zul.:
1.: ?/3600 kg 2.: ?/7200 kg
Nutzlast/-verhältnis:
3500 kg / 0.48
Leistungsgew. leer/zGG/zZGG:
48.7 / 72 / 80 kg/PS // 20.5 / 13.9 / 12.5 PS/Tonne
Wendekreis:
18 m
Sitzplätze/Stehplätze:
40/0
