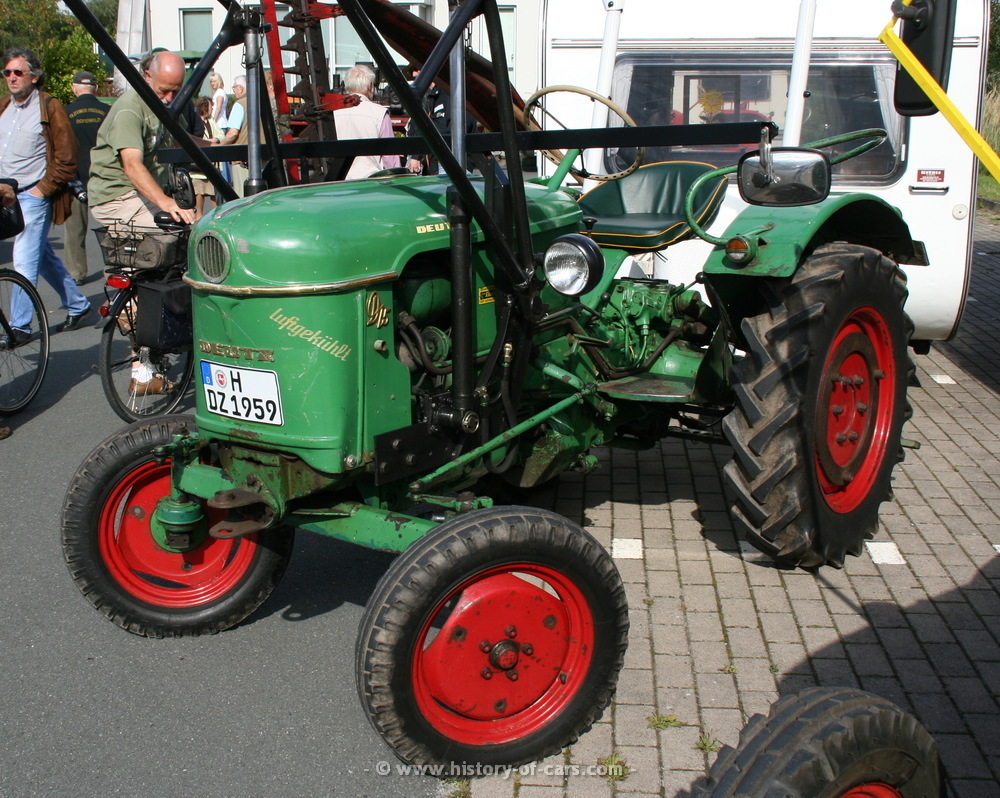

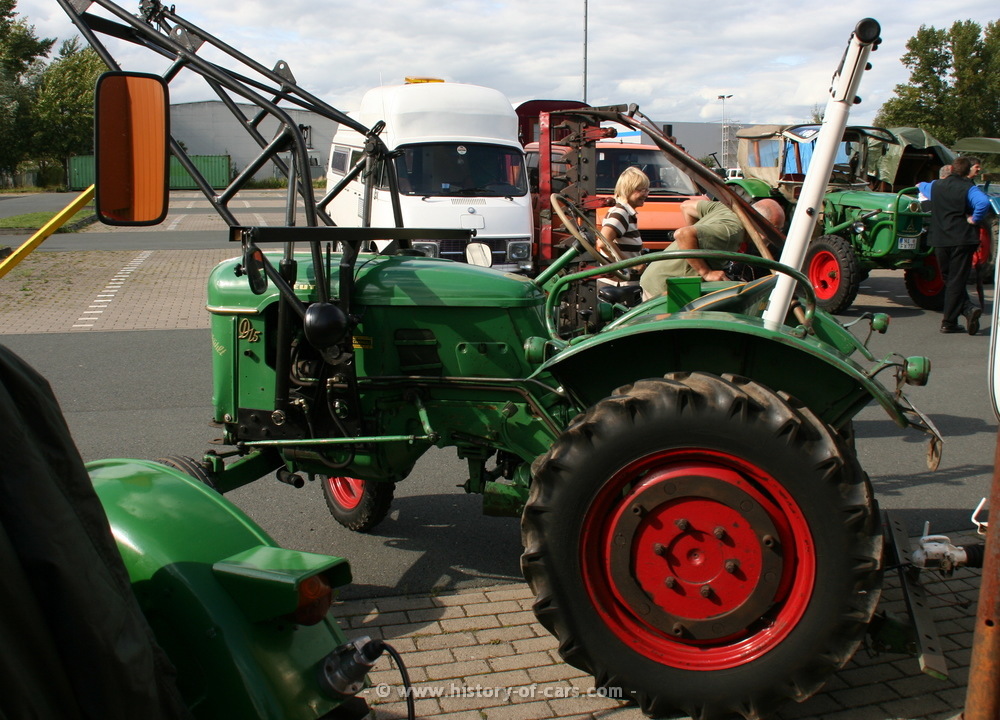

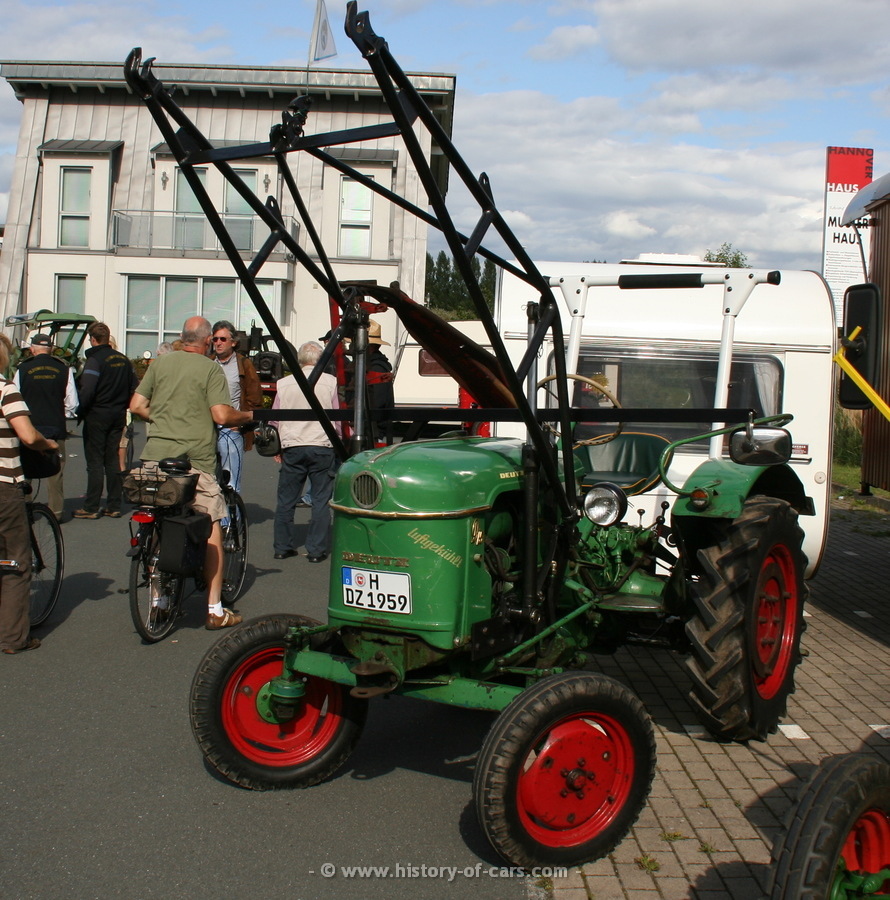

Deutz D15
Fahrzeugtyp:
Ackerschlepper
Baujahr Fahrzeug:
1959-1965
Baujahr Modellreihe:
1959-1965
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Kühlung
Mmax
Deutz F1L712
59-65:
1
20.0:1
95.0 x 120.0 mm
850 cm³
14PS
@2400/min
16.5 PS/l
Diesel
Luft
45 Nm
@1700/min
sonst. Daten
Motor
Vorw.
Rückw.
mit.Kolbeng.
mitl.A.Druck.
engine option #1
0.9l | 14PS:
19.5 kmh
5.1 kmh
9.6 m/s
6.1 bar
Reifen/Räder/Getriebe
Räder vorn/hinten:
4.00-16 // 8-24
optionale Räder vorn/hinten:
? // 9-24, 9-28
Getriebe/Antrieb:
ZF-Schaltradgetriebe A4: 6 Vorwärts, 2 Rückwärts / 4x2
Abmessungen/Gewichte
Länge x Breite x Höhe
2645 mm x 1545 mm x 1490 mm
Radstand - Spur v/h:
1690 mm - 1194 bis 1364 / 1250 bis 1500 mm
Bodenfreiheit:
345 mm
Einige Berechnungen:
Grundfläche: ca. 4.09 m² - Stirnfläche: ca. 1.90 m² - LxBxH: ca. 6.09 m³
Gewichte leer/zGG:
920 kg - 1000 kg / 1600 kg
max. Achslasten:
1.: 550 kg 2.: 1050 kg
Leistungsgewicht leer/zGG:
65.7 - 71.4 / 114.3 kg/PS // 14 - 15.2 / 8.8 PS/Tonne
Wendekreis:
6.3 m
Wendekreis mit Lenkbremse:
5.3 m
Produktionszahlen
Produktion:
20.750
