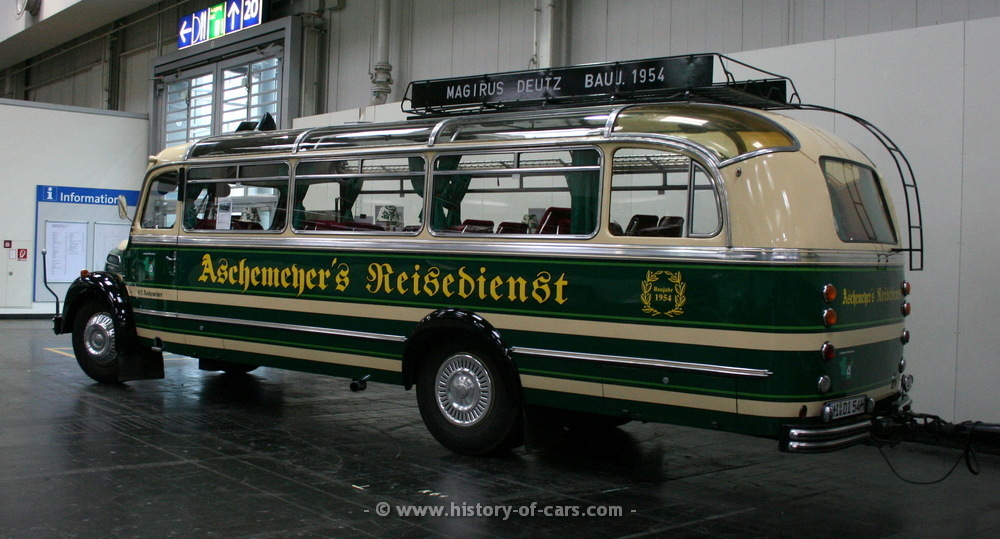

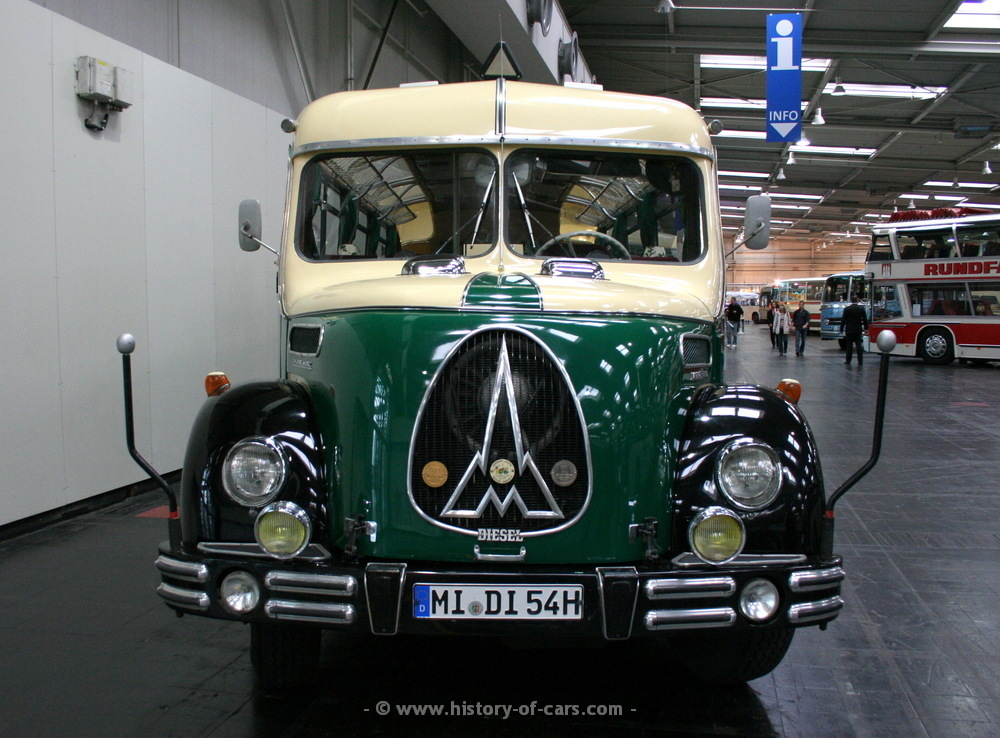

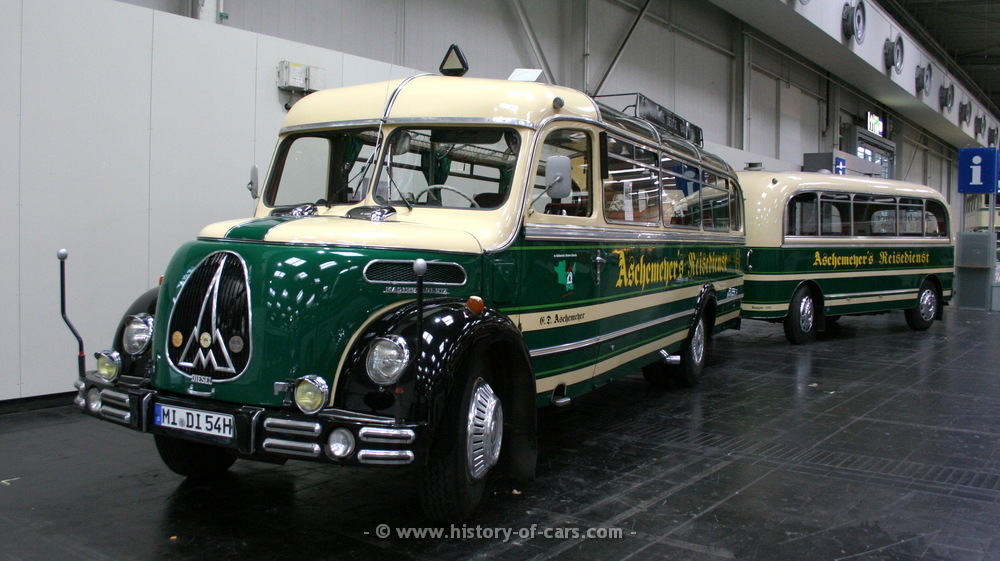

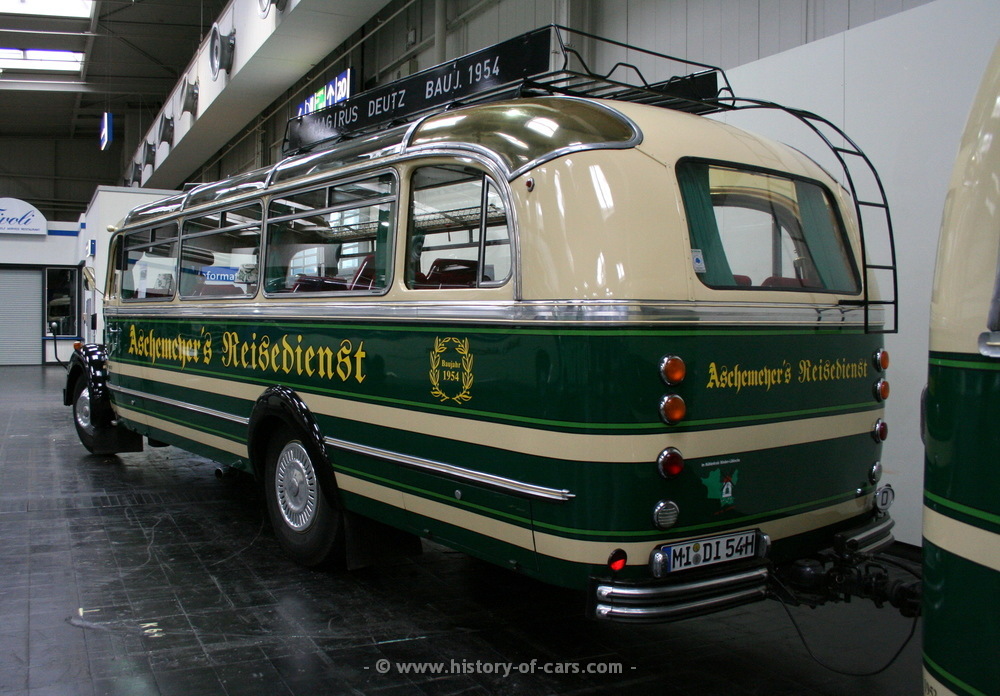

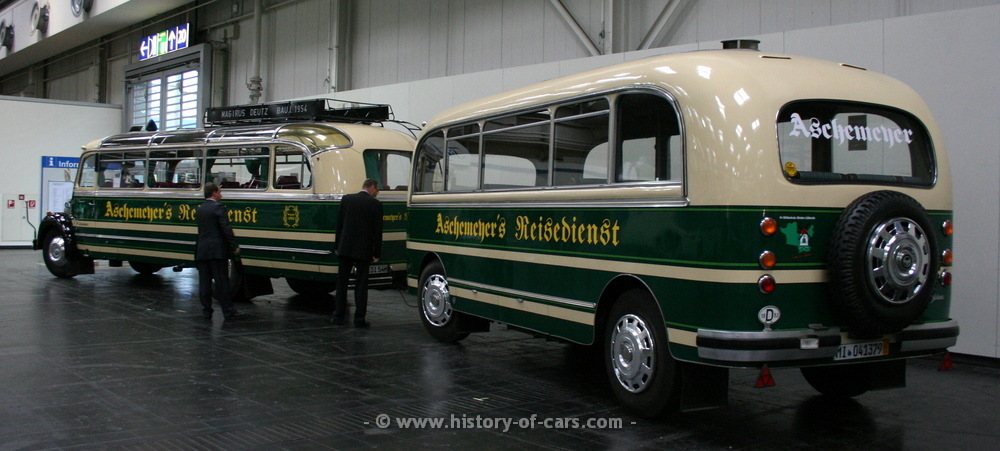

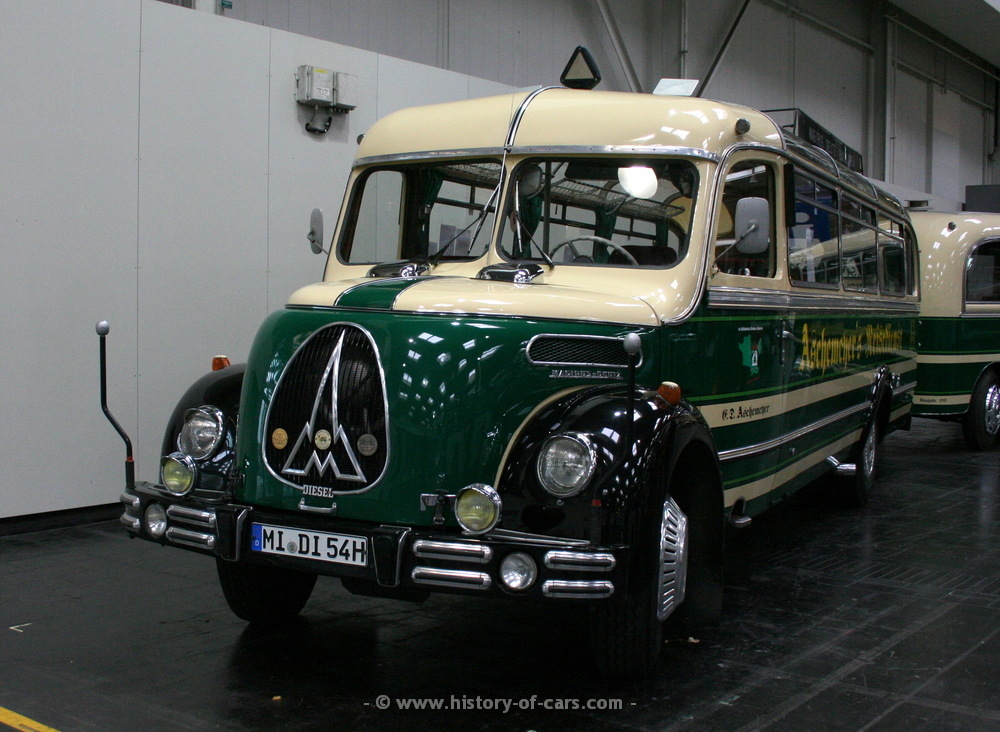

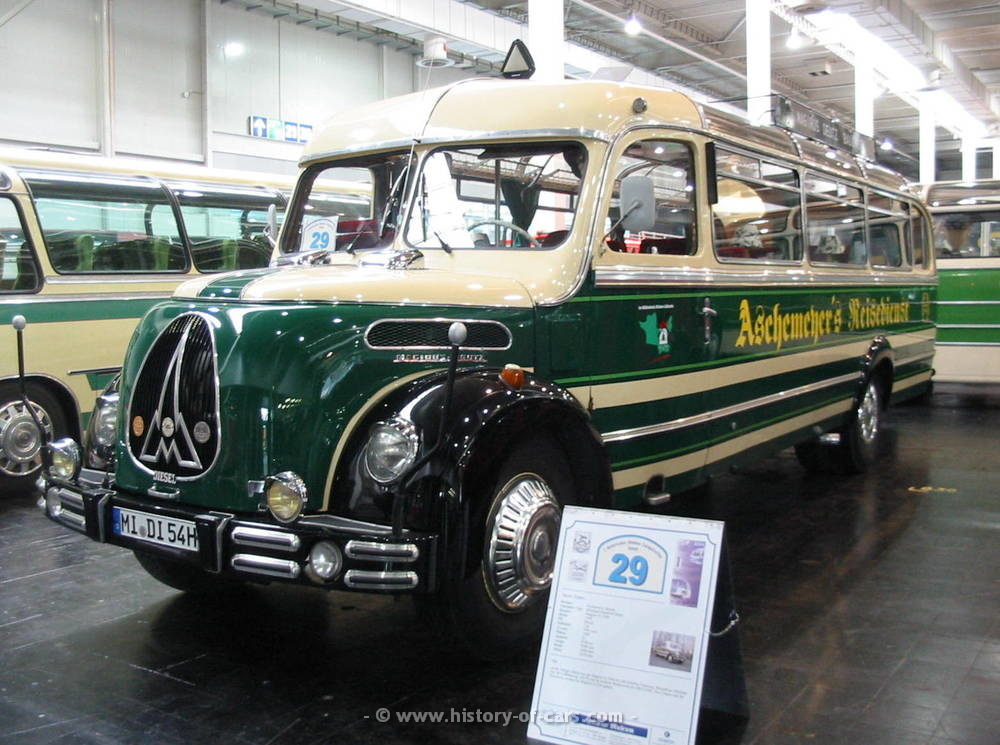

Magirus-Deutz O3500/6
Fahrzeugtyp:
Omnibus
Baujahr Fahrzeug:
1954
Baujahr Modellreihe:
1950-1955
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Deutz F6L 614
54:
V6/12V
17.8:1
110.0 x 140.0 mm
7983 cm³
130PS
@2250/min
16.3 PS/l
Diesel
441 Nm
@1500/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
8.0l | 130PS:
86 kmh
17.5 l/100km
10.5 m/s
6.4 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
8.25-20
Getriebe/Antrieb:
ZF AK 5-33: 5 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
9125 mm x 2400 mm x 2720 mm // 1090/2900 mm
Radstände - Spur v/m/h:
5150 mm - 1800/1615 mm
Einige Berechnungen:
Grundfläche: ca. 21.90 m² - Stirnfläche: ca. 5.39 m² - LxBxH: ca. 59.57 m³
Gewichte leer/zGG/zZGG:
5900 kg / 8700 kg / 14300 kg
max. Achslasten tech./zul.:
1.: ?/2900 kg 2.: ?/5800 kg
Nutzlast/-verhältnis:
2800 kg / 0.47
Leistungsgew. leer/zGG/zZGG:
45.4 / 66.9 / 110 kg/PS // 22 / 14.9 / 9.1 PS/Tonne
Wendekreis:
20.5 m
Sitzplätze/Stehplätze:
36/0
