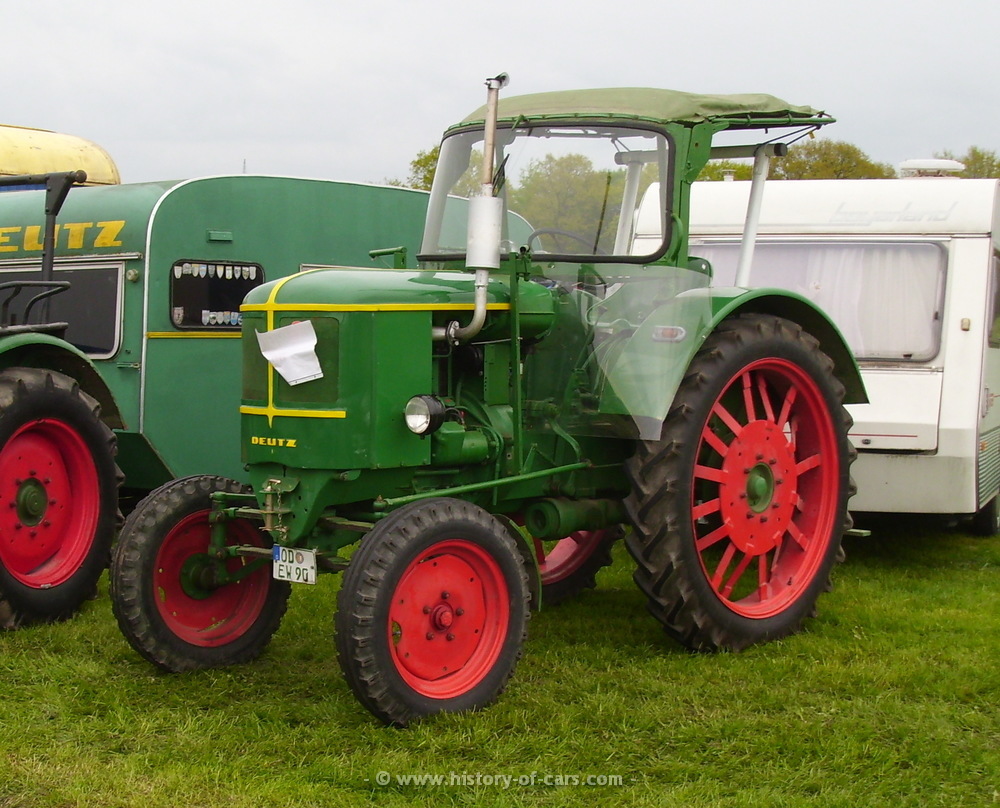

Deutz F2L414/51 Hochrad
Fahrzeugtyp:
Ackerschlepper
Baujahr Fahrzeug:
1951-1953
Baujahr Modellreihe:
1950-1960
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Kühlung
Mmax
Deutz F2L414
51-53:
2
17.8:1
110.0 x 140.0 mm
2660 cm³
30PS
@1600/min
11.3 PS/l
Diesel
Luft
? Nm
@?/min
sonst. Daten
Motor
Vorw.
Rückw.
mit.Kolbeng.
mitl.A.Druck.
engine option #1
2.7l | 30PS:
25 kmh
5.5 kmh
7.5 m/s
6.2 bar
Reifen/Räder/Getriebe
Räder vorn/hinten:
6.00-20 // 9-40
optionale Räder vorn/hinten:
6.00-20 // 9-42
Getriebe/Antrieb:
ZF A15 Getriebe: 5 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Länge x Breite x Höhe
2840 mm x 1600 mm x 1835 mm
Radstand - Spur v/h:
1745 mm - 1280 bis 1424 / 1250 bis 1502 mm
Bodenfreiheit:
480 mm
Einige Berechnungen:
Grundfläche: ca. 4.54 m² - Stirnfläche: ca. 2.42 m² - LxBxH: ca. 8.34 m³
Gewichte leer/zGG:
1800 kg / 2700 kg
max. Achslasten:
1.: 700 kg 2.: 2000 kg
Leistungsgewicht leer/zGG:
60 / 90 kg/PS // 16.7 / 11.1 PS/Tonne
Wendekreis mit Lenkbremse:
5.2 m
Produktionszahlen
Produktion:
21.508 (alle F2L414)
