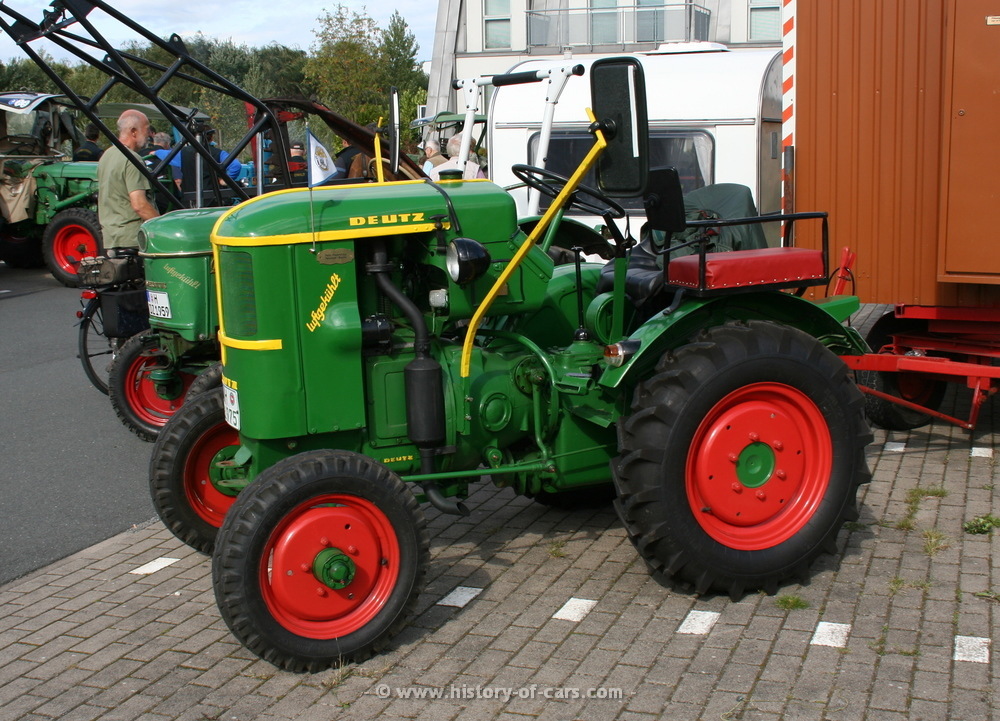

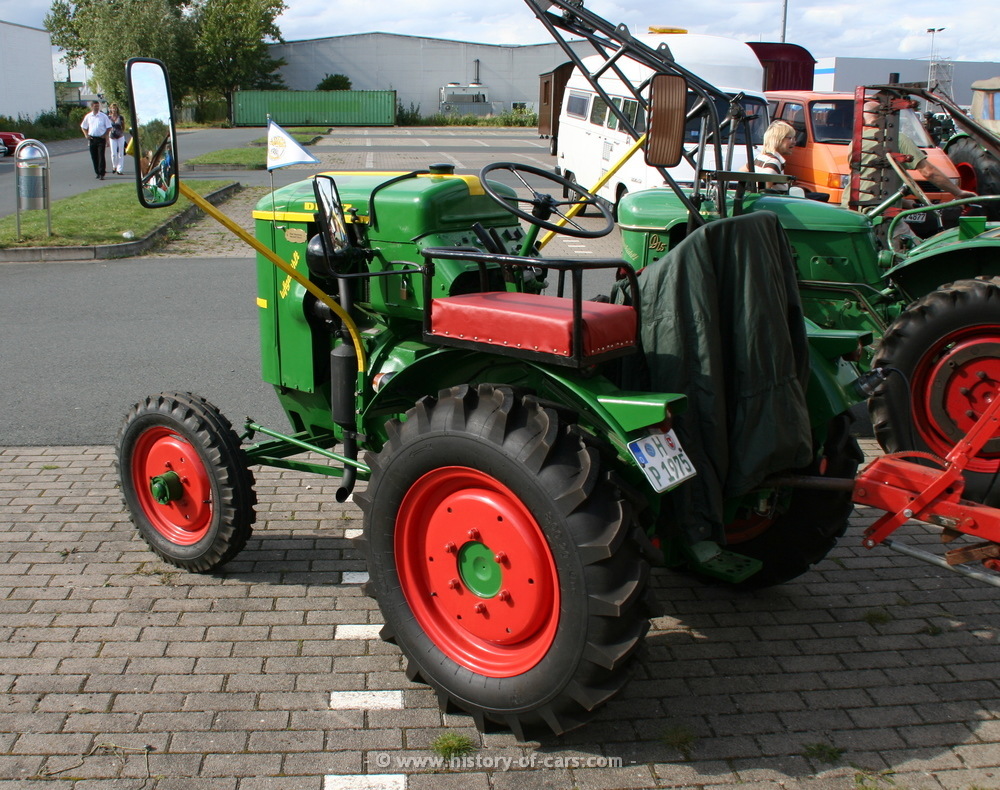

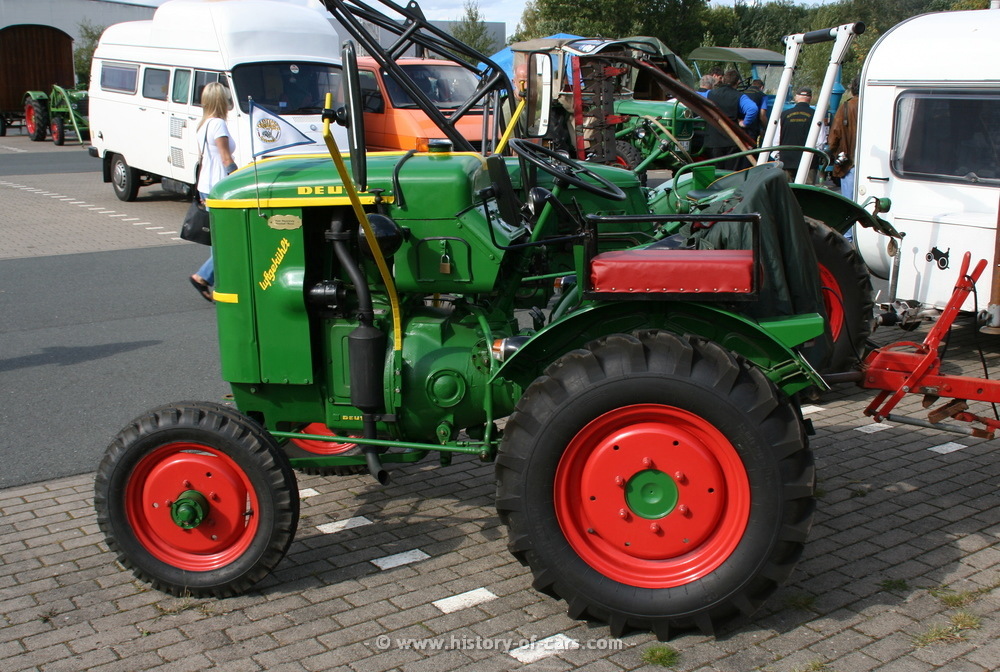

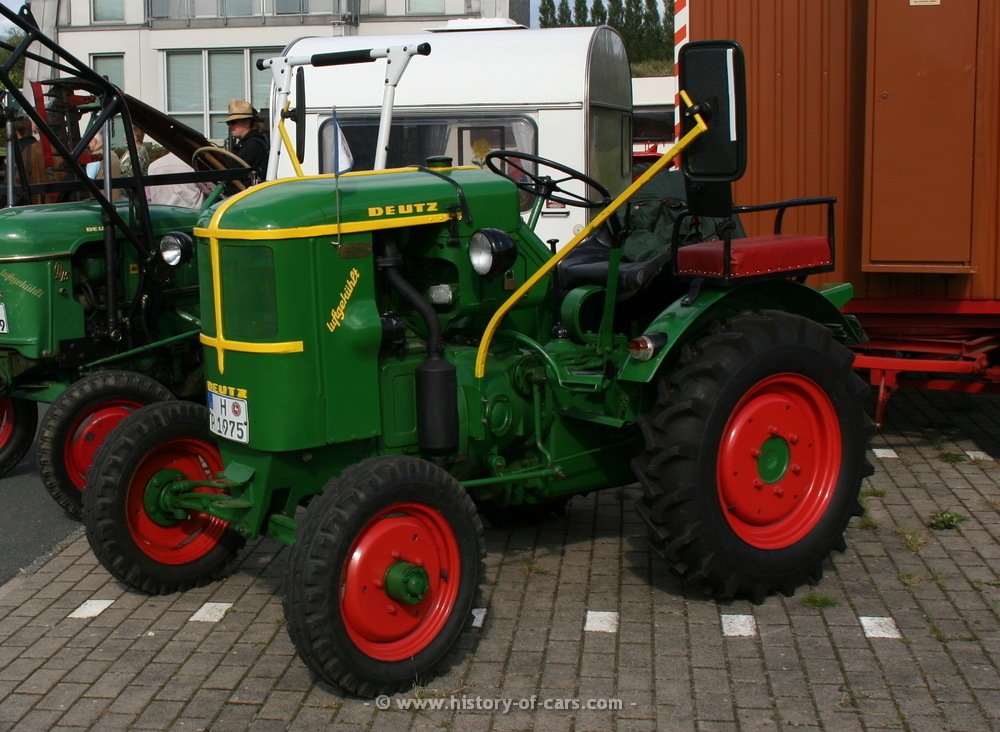

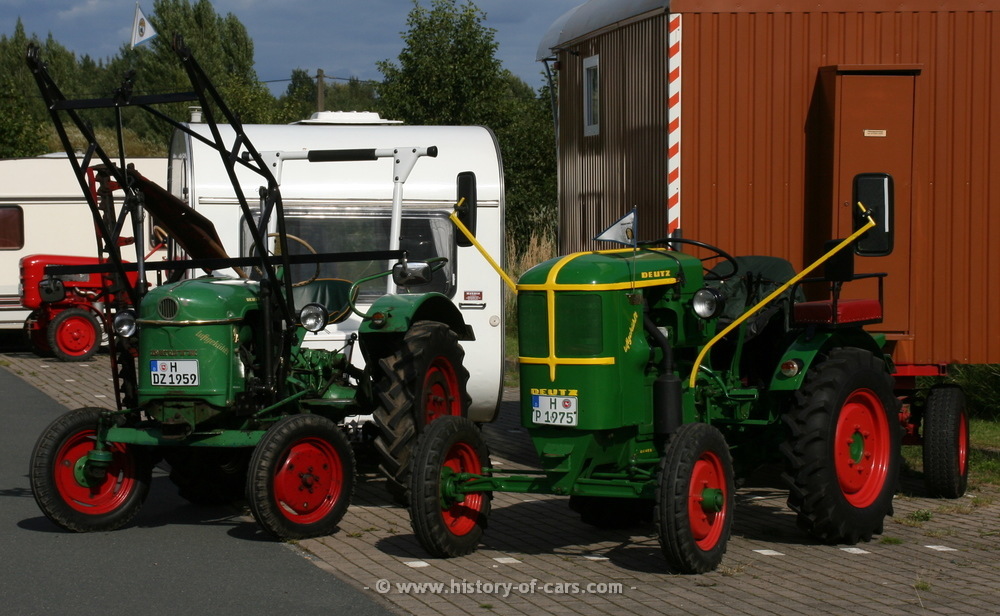

Deutz F1L414/50

Fahrzeugtyp:
Ackerschlepper
Baujahr Fahrzeug:
1950-1951
Baujahr Modellreihe:
1950-1951
Herkunftsland:
Motoren/Fahrleistungen
Verd.
Bohrung x Hub
Hubraum
Pmax

spez. P
Kühlung
Mmax

sonst. Daten
Motor
Vorw.
Rückw.
mit.Kolbeng.
mitl.A.Druck.
Reifen/Räder/Getriebe
4.50-16 // 8-00-20
optionale Räder vorn/hinten:
5.00-16 // 9-32, 10-28
Getriebe/Antrieb:
Deutz Getriebe: 4 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Länge x Breite x Höhe
2595 mm x 1600 mm x 1540 mm
Radstand - Spur v/h:
1585 mm - 1250 bis 1500 / 1250 bis 1500 mm
Bodenfreiheit:
400 mm
Einige Berechnungen:
Grundfläche: ca. 4.15 m² - Stirnfläche: ca. 2.03 m² - LxBxH: ca. 6.39 m³
Gewichte leer/zGG:
1280 kg / 1800 kg
max. Achslasten:
1.: 600 kg  2.: 1200 kg
Leistungsgewicht leer/zGG:
85.3 / 120 kg/PS // 11.7 / 8.3 PS/Tonne
Wendekreis:
6.6 m
Wendekreis mit Lenkbremse:
5.4 m
Produktionszahlen
ca. 3.500 (alle F1L414/50)
