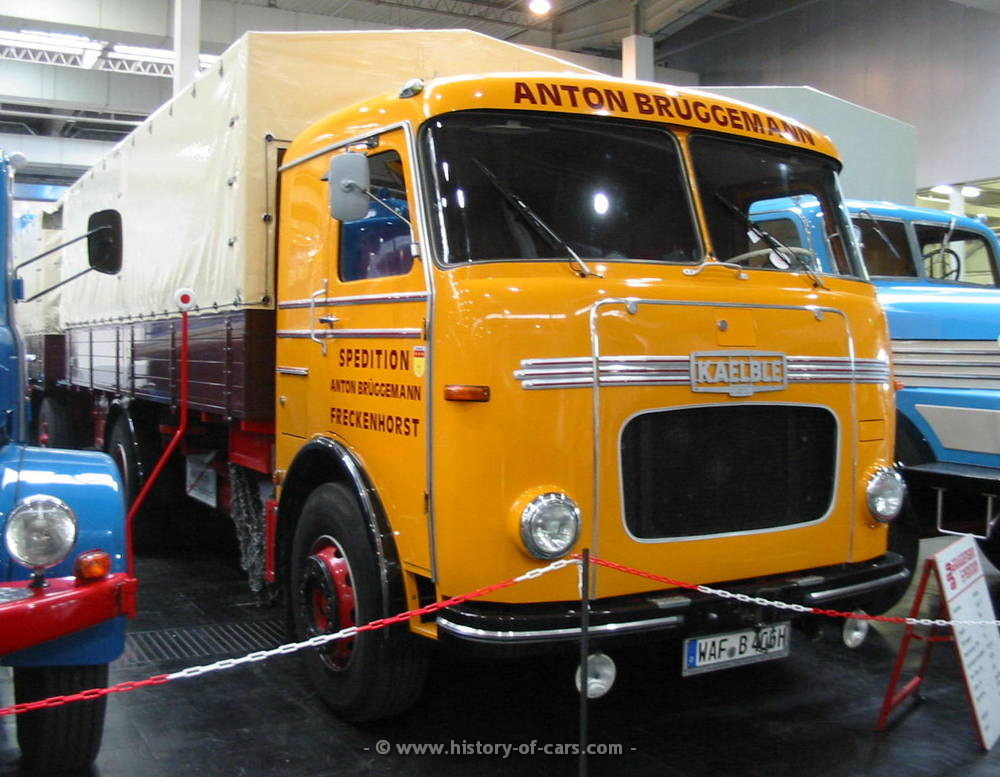

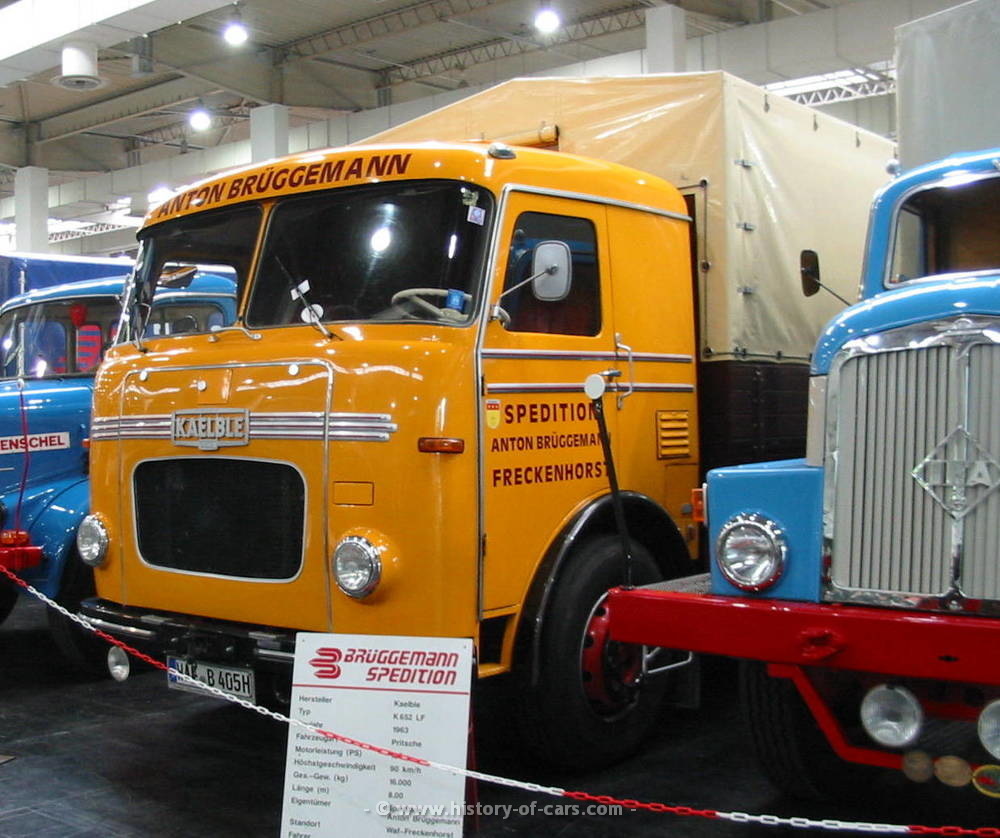

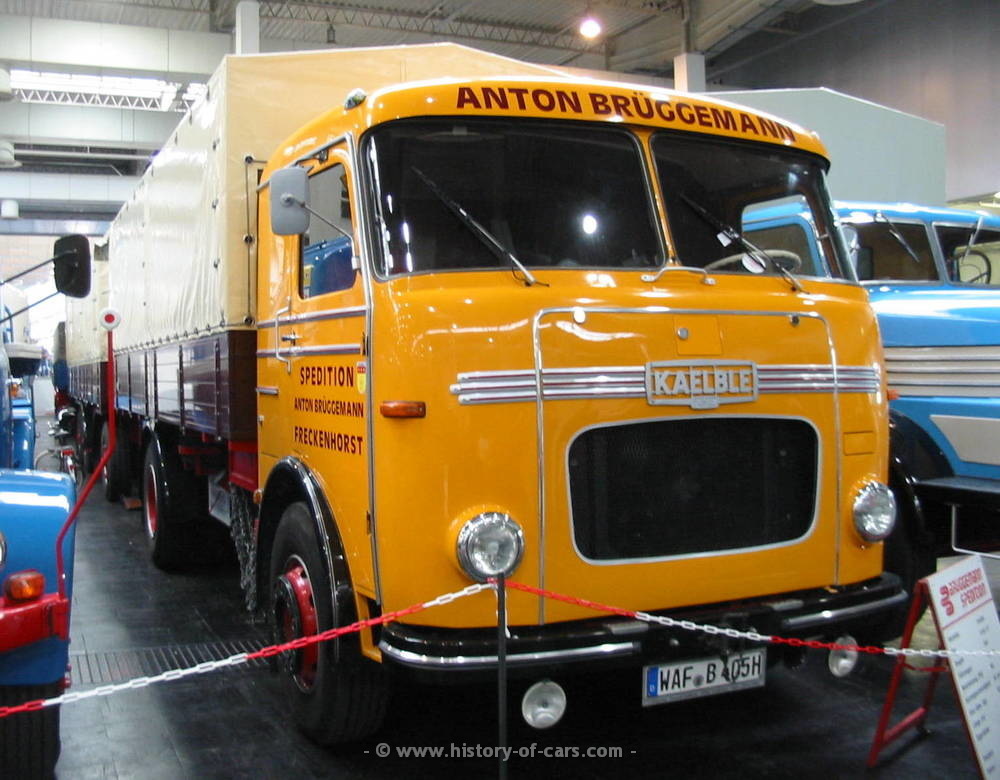

Kaelble K652LF Pritsche
Fahrzeugtyp:
schwerer Lastwagen
Baujahr Fahrzeug:
1963
Baujahr Modellreihe:
1962-1963
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Kaelble M130s
63:
R6/12V
19.0:1
130.0 x 150.0 mm
11945 cm³
195PS
@2100/min
16.3 PS/l
Diesel
716 Nm
@1200/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
11.9l | 195PS:
83 kmh
23.2-27.2 l/100km
10.5 m/s
6.9 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
?
Getriebe/Antrieb:
? Vorwärts, ? Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
8000 mm x 2500 mm x 2700 mm // 1350/2050 mm
Radstände - Spur v/m/h:
4600 mm - 2022/1780 mm
Einige Berechnungen:
Grundfläche: ca. 20.00 m² - Stirnfläche: ca. 5.57 m² - LxBxH: ca. 54.00 m³
Gewichte leer/zGG/zZGG:
6800 kg - 7300 kg / 16000 kg / 32000 kg
max. Achslasten tech./zul.:
1.: ?/6000 kg 2.: ?/10000 kg
Nutzlast/-verhältnis:
9200 kg / 1.35
Leistungsgew. leer/zGG/zZGG:
34.9 - 37.4 / 82.1 / 164.1 kg/PS // 26.7 - 28.7 / 12.2 / 6.1 PS/Tonne
Wendekreis:
18.4 m
Produktionszahlen
Produktion:
42 (alle K652LF)
