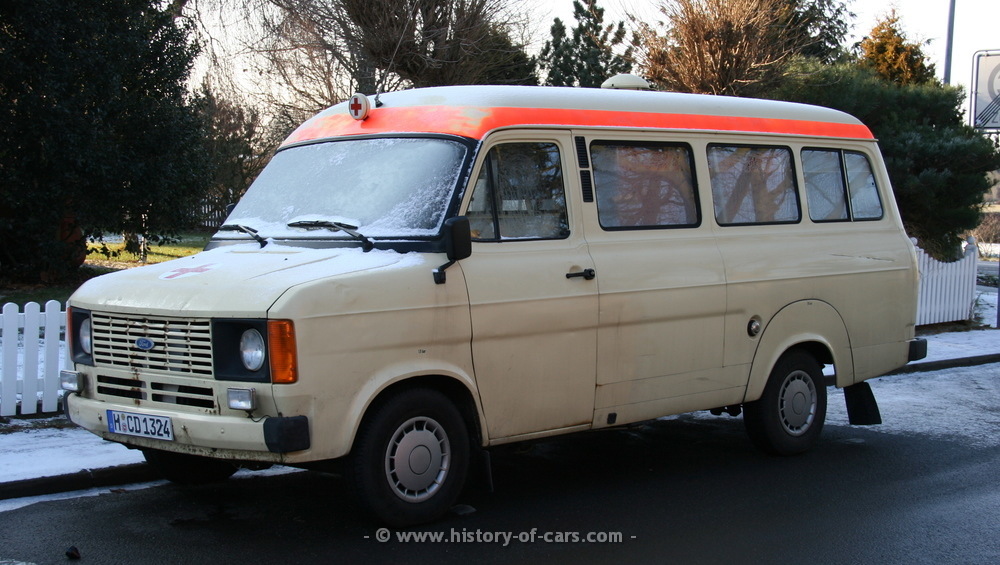

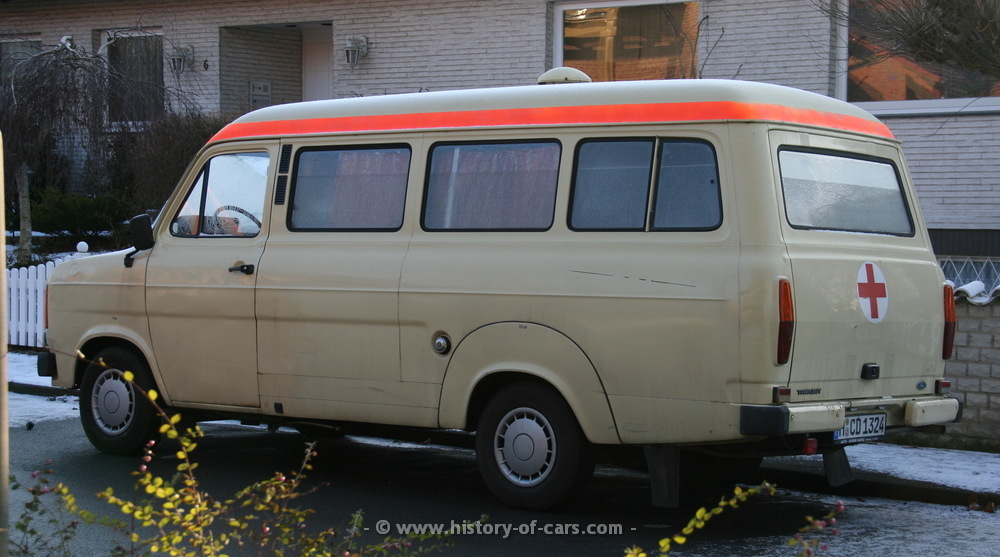

Ford Transit Mk. 2 Bus
Fahrzeugtyp:
leichtes Nutzfahrzeug
Baujahr Fahrzeug:
1978-1983
Baujahr Modellreihe:
1978-1985
Herkunftsland:
Deutschland/Großbritannien
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
option #1
78-83:
R4/8V
8.2
87.7 x 66.0 mm
1593 cm³
65PS
@4750/min
40.8 PS/l
Vergaser
114 Nm
@2800/min
option #2
78-83:
R4/8V
8.2
90.8 x 77.0 mm
1954 cm³
78PS
@4500/min
39.9 PS/l
Vergaser
147 Nm
@2800/min
option #3
78-83:
V6/12V
8.0
93.7 x 72.4 mm
2993 cm³
100PS
@4650/min
33.4 PS/l
Vergaser
190 Nm
@3100/min
option #4
81-83:
R4/8V
22.0
93.7 x 85.6 mm
2358 cm³
62PS
@3600/min
26.3 PS/l
Diesel
139 Nm
@2000/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
1.6l | 65PS:
115 kmh
11.0-12.0 l/100km
10.4 m/s
7.6 bar
engine option #2
2.0l | 78PS:
125 kmh
11.5-12.5 l/100km
11.5 m/s
7.8 bar
engine option #3
3.0l | 100PS:
130 kmh
14.0-15.0 l/100km
11.2 m/s
6.3 bar
engine option #4
2.4l | 62PS:
103 kmh
10.5-11.5 l/100km
10.3 m/s
6.4 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
195 R14C
Getriebe/Antrieb:
4 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
ca. 5302 mm x ca. 1980 mm x ca. 2177 mm // ?/? mm
Radstände - Spur v/m/h:
ca. 2997 mm - ca. 1657/ca. 1588 mm
Einige Berechnungen:
Grundfläche: ca. 10.50 m² - Stirnfläche: ca. 3.56 m² - LxBxH: ca. 22.85 m³
Gewichte leer/zGG/zZGG:
1750 kg - 1850 kg / 3100 kg / ? kg
Nutzlast/-verhältnis:
1350 kg / 0.77
Leistungsgew. leer/zGG/zZGG:
18.5 - 28.2 / 31 - 50 / ? kg/PS // 35.4 - 54.1 / 20 - 32.3 / ? PS/Tonne
Wendekreis:
12.7 m
Move
Close
This is the country where the manufacturer of this car has/had its head office. Sometimes the car itself was developed and produced somewhere else.
Move
Close
This engine-list shows all available engines for the cars here on the pictures and mentioned in the heading of the table during its production time.
If a specific engine is missing, it is probably because this engine came along with easy to spot changes on the outside of the car. Cars with such engines get their own entry on this website.
Move
Close
This is the production period of the car on the pictures, and not the period for the car model series.
Note: For cars made in/for the USA these years are "model years", for all others "calender years".
Move
Close
Stock tires for the base model. Sometimes with a different engine came a different tire/wheel combination.
Move
Close
Base-price/base-price-range for the car the time it was built, not the price for the car today.
Move
Close
If you need help or want some explanations you can click on certain text elements in this table to get additional information.
You can also visit the "about this" section or read the FAQs.
Move
Close
A single figure with no further declaration in brackets means the production figure of the car described in this table and not the whole model series.
Move
Close
This table describes a heavily modified car with every known information.
Move
Close
This column shows the years the particular engine was available.
Move
Close
This shows the total number of cylinder and valves the particular engine got. For more information read the "about this" section.
Move
Close
Here you can see the way the fuel (diesel, gasoline) is delivered. You can also see whether the car is powered by an electric engine. (Read also the "about this".)
Move
Close
The fuel-consumption is always only an estimation. The consumption depends on the driver, the way the car is driven, where it's driven, how fast etc. Therefore an exact figure can not be given. The fuel consumption figures here give a range where the mileage can be expected.
