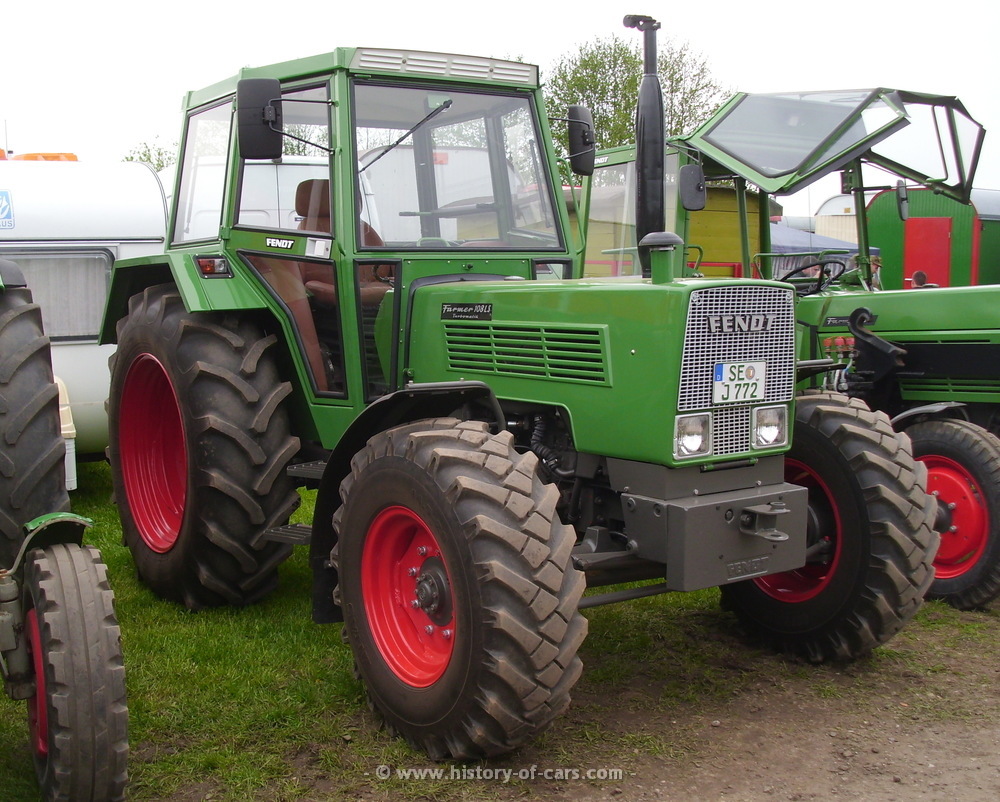

Fendt Farmer 108LSA
Fahrzeugtyp:
Ackerschlepper
Baujahr Fahrzeug:
1977-1980
Baujahr Modellreihe:
1977-1980
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Kühlung
Mmax
MWM D226-4.2
77-80:
4
18.0:1
105.0 x 120.0 mm
4154 cm³
75PS
@2300/min
18.1 PS/l
Diesel
Wasser
270 Nm
@1400/min
sonst. Daten
Motor
Vorw.
Rückw.
mit.Kolbeng.
mitl.A.Druck.
engine option #1
4.2l | 75PS:
19.75 kmh
11.73 kmh
9.2 m/s
6.9 bar
Reifen/Räder/Getriebe
Räder vorn/hinten:
11.2/10-24 // 13.6/12-38
optionale Räder vorn/hinten:
12.5-20, 14.5-20 // 18.4/15-30, 14.9/14-34
Getriebe/Antrieb:
Fendt Vollsynchron-Feinstufen-Gruppengetriebe Typ R 25/R 115: 13 Vorwärts, 4 Rückwärts / 4x4
Abmessungen/Gewichte
Länge x Breite x Höhe
3927 mm x 2121 mm x 2464 mm
Radstand - Spur v/h:
2224 mm - 1684 / 1660 mm
Bodenfreiheit:
380 mm
Einige Berechnungen:
Grundfläche: ca. 8.33 m² - Stirnfläche: ca. 4.31 m² - LxBxH: ca. 20.52 m³
Gewichte leer/zGG:
3590 kg / 6000 kg
Leistungsgewicht leer/zGG:
47.9 / 80 kg/PS // 20.9 / 12.5 PS/Tonne
Wendekreis:
9.34 m
Produktionszahlen
Produktion:
3.646
