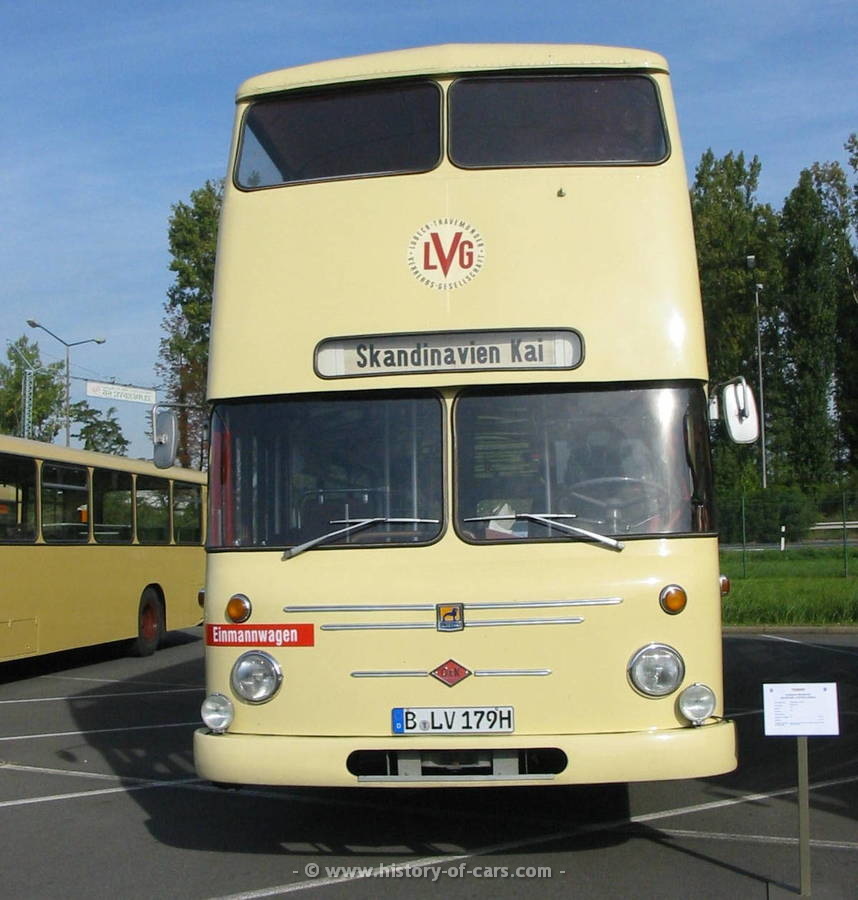

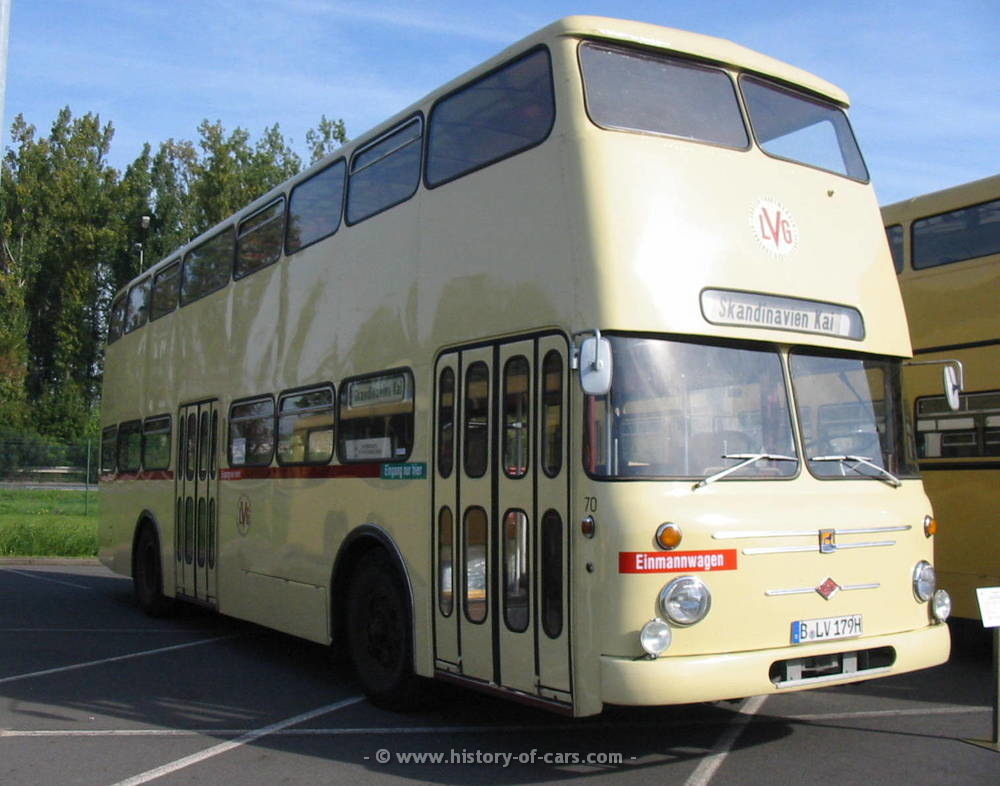

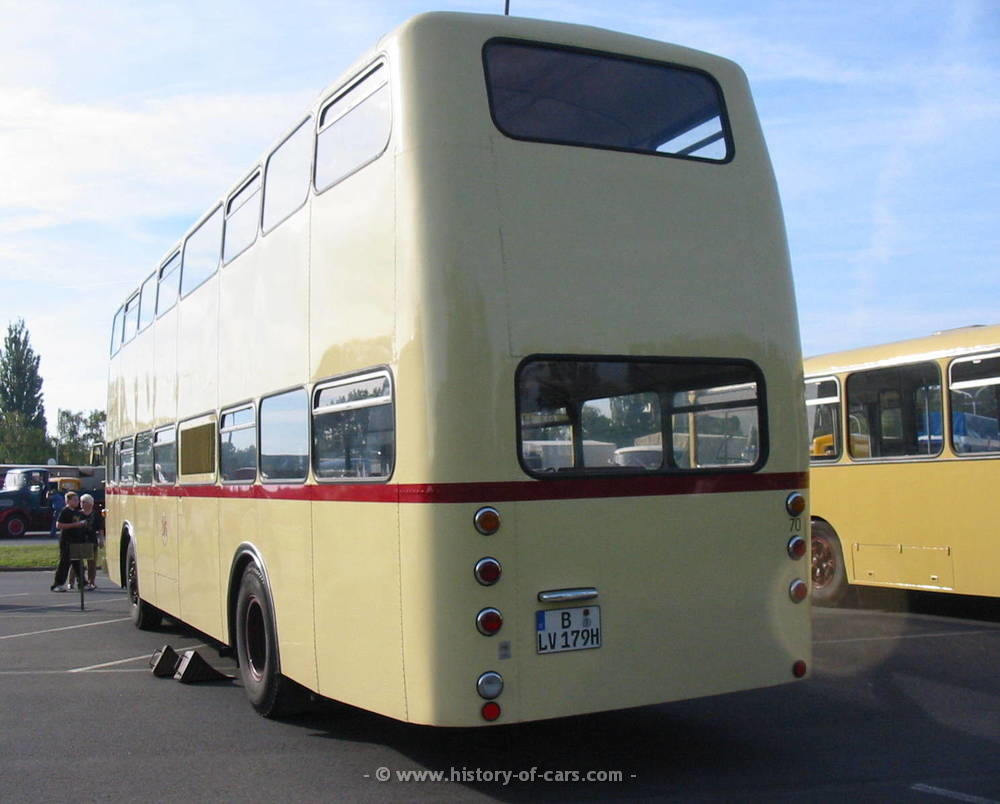

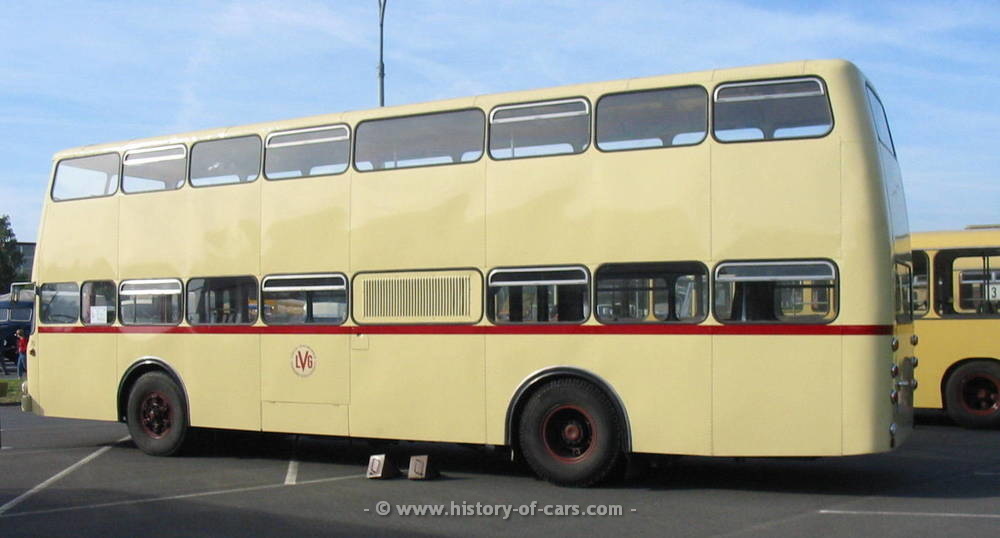

Büssing DE
Fahrzeugtyp:
Doppeldecker-Linienbus
Baujahr Fahrzeug:
1972
Baujahr Modellreihe:
1965-1974
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Büssing U7D
72:
i6/12V
16.5:1
108.0 x 135.0 mm
7416 cm³
155PS
@2400/min
20.9 PS/l
DDI
481 Nm
@1400/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
7.4l | 155PS:
100 kmh
? l/100km
10.8 m/s
7.7 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
9.00-20
Getriebe/Antrieb:
Voith Diwa 502-3 Automatik 3 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
11165 mm x 2500 mm x 4040 mm // ?/? mm
Radstände - Spur v/m/h:
? mm - ?/? mm
Einige Berechnungen:
Grundfläche: ca. 27.91 m² - Stirnfläche: ca. 8.33 m² - LxBxH: ca. 112.77 m³
Gewichte leer/zGG/zZGG:
9200 kg / 15800 kg / ? kg
Nutzlast/-verhältnis:
6600 kg / 0.72
Leistungsgew. leer/zGG/zZGG:
59.4 / 101.9 / ? kg/PS // 16.8 / 9.8 / ? PS/Tonne
Sitzplätze/Stehplätze:
91/8
Produktionszahlen
Produktion:
816
Geschichte
Ãœber dieses Modell:
Der DE war der Nachfolger des D2U für die Berliner Verkehrsbetriebe.
Dieser Bus wurde für die Lübeck-Travemüder-Verkehrsbetriebe in Sonderausführung gebaut.
