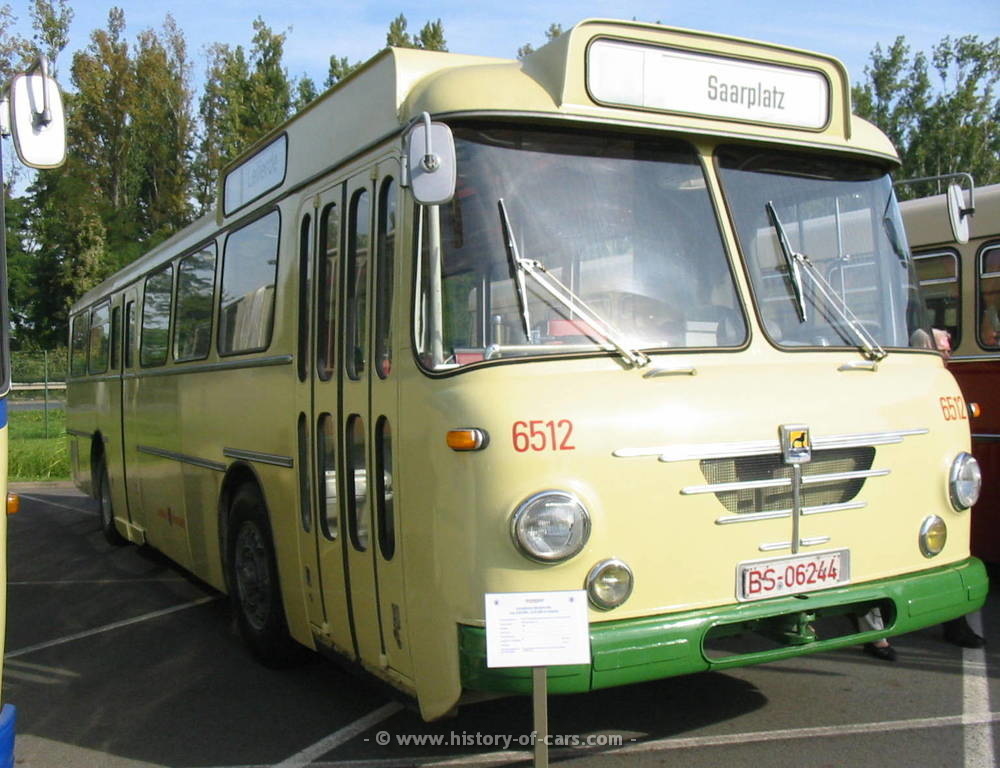

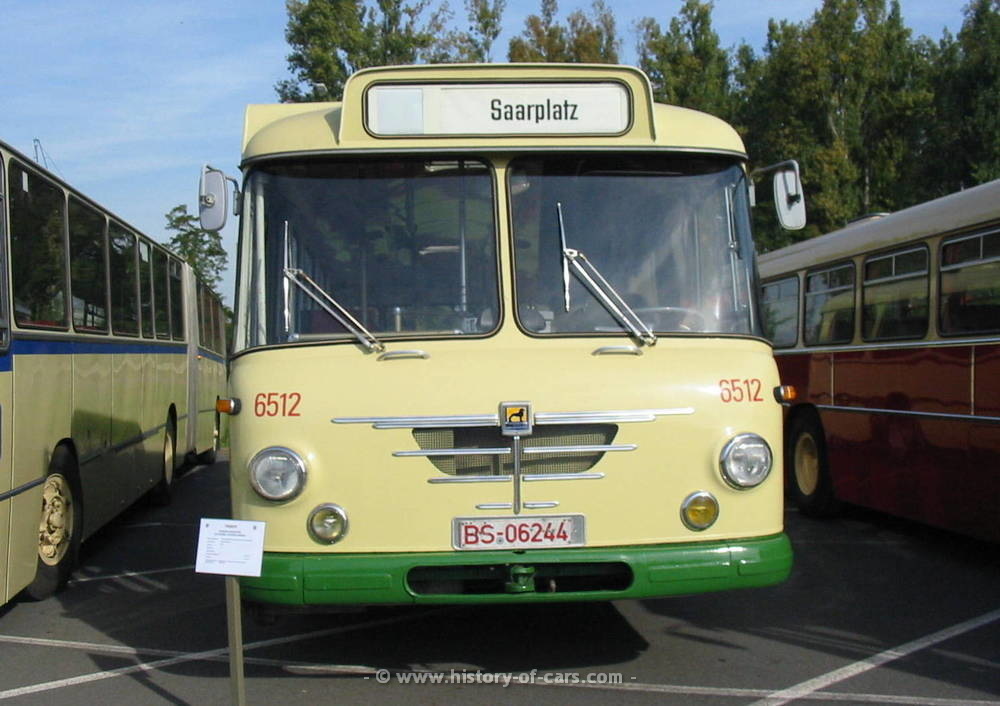

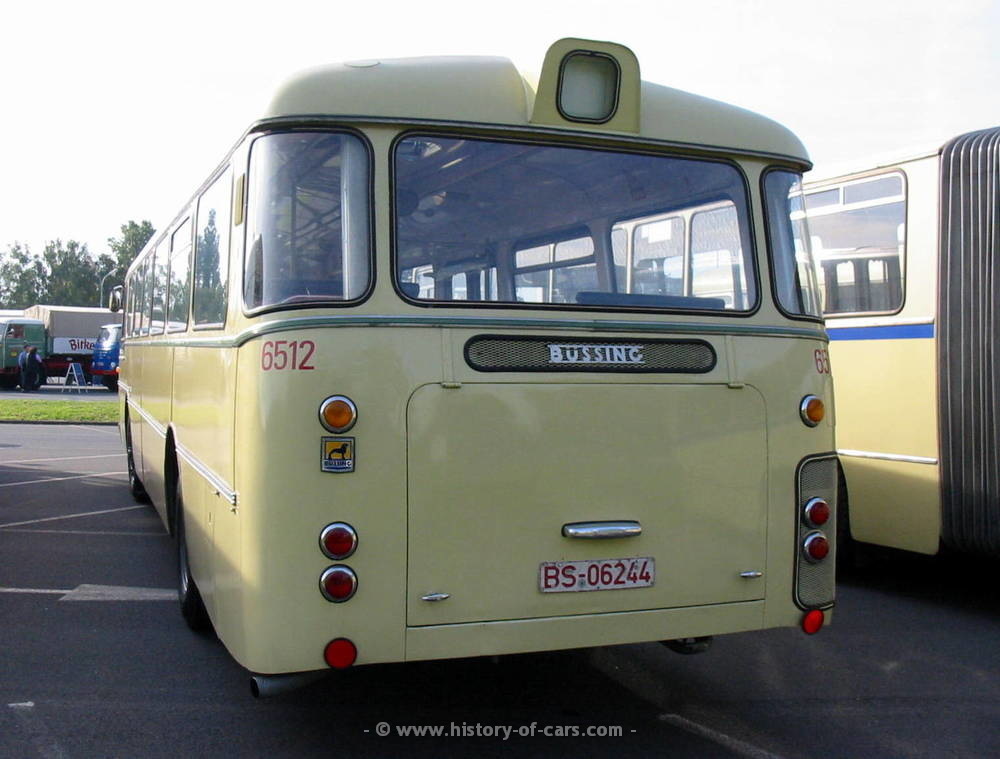

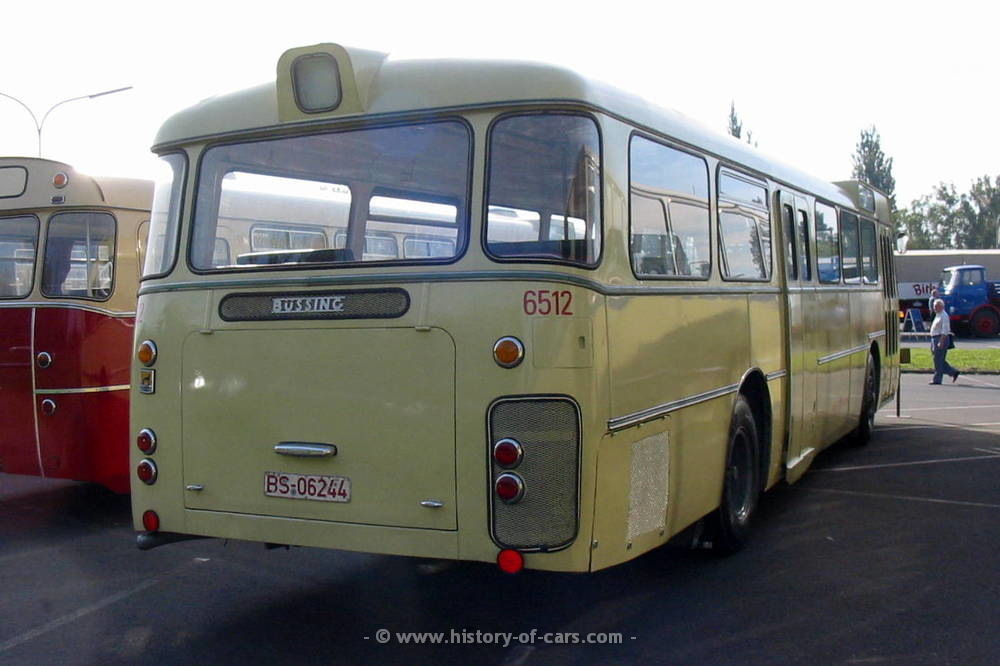

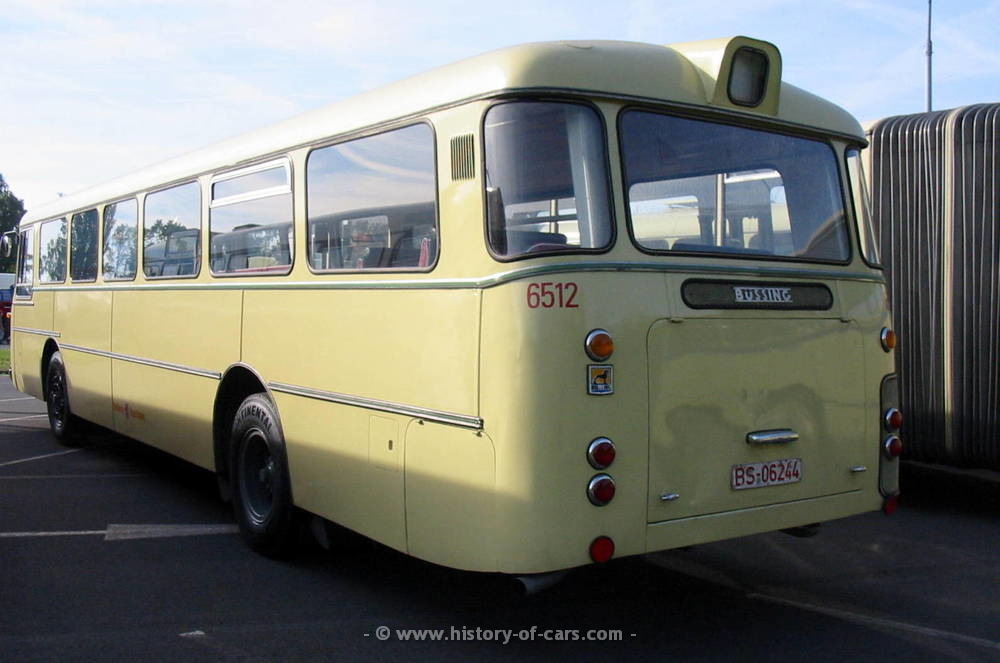

Büssing Präfekt 13x
Fahrzeugtyp:
Linienbus
Baujahr Fahrzeug:
1965
Baujahr Modellreihe:
1965-1970
Herkunftsland:
Deutschland
Motoren/Fahrleistungen
Motoren
Jahre
Zyl./Vent.
Verd.
Bohrung x Hub
Hubraum
Pmax
spez. P
Gemisch.
Mmax
Büssing U7/150
65:
i6/12V
21.0:1
108.0 x 135.0 mm
7416 cm³
150PS
@2400/min
20.2 PS/l
Diesel
471 Nm
@1400/min
sonst. Daten
Motor
Vmax
Verbrauch
mit.Kolbeng.
mitl.A.Druck.
engine option #1
7.4l | 150PS:
90 kmh
24.2 l/100km
10.8 m/s
7.4 bar
Reifen/Räder/Getriebe
Räder vorn/mitte/hinten:
9.0-20
Getriebe/Antrieb:
ZF S 5-35: 5 Vorwärts, 1 Rückwärts / 4x2
Abmessungen/Gewichte
Lä.xBr.xHö. // Überhang v/h:
11270 mm x 2500 mm x 3015 mm // 2810/2950 mm
Radstände - Spur v/m/h:
5400 mm - 2107/1800 mm
Einige Berechnungen:
Grundfläche: ca. 28.17 m² - Stirnfläche: ca. 6.22 m² - LxBxH: ca. 84.95 m³
Gewichte leer/zGG/zZGG:
7400 kg - 7600 kg / 11800 kg / 13300 kg
max. Achslasten tech./zul.:
1.: ?/5400 kg 2.: ?/10000 kg
Nutzlast/-verhältnis:
4400 kg / 0.59
Leistungsgew. leer/zGG/zZGG:
49.3 - 50.7 / 78.7 / 88.7 kg/PS // 19.7 - 20.3 / 12.7 / 11.3 PS/Tonne
Wendekreis:
20.4 m
Sitzplätze/Stehplätze:
34/?
Geschichte
Ãœber dieses Modell:
Der Büssing Präfekt trat 1965 nach einem Facelift die Nachfolge des Senator an.
